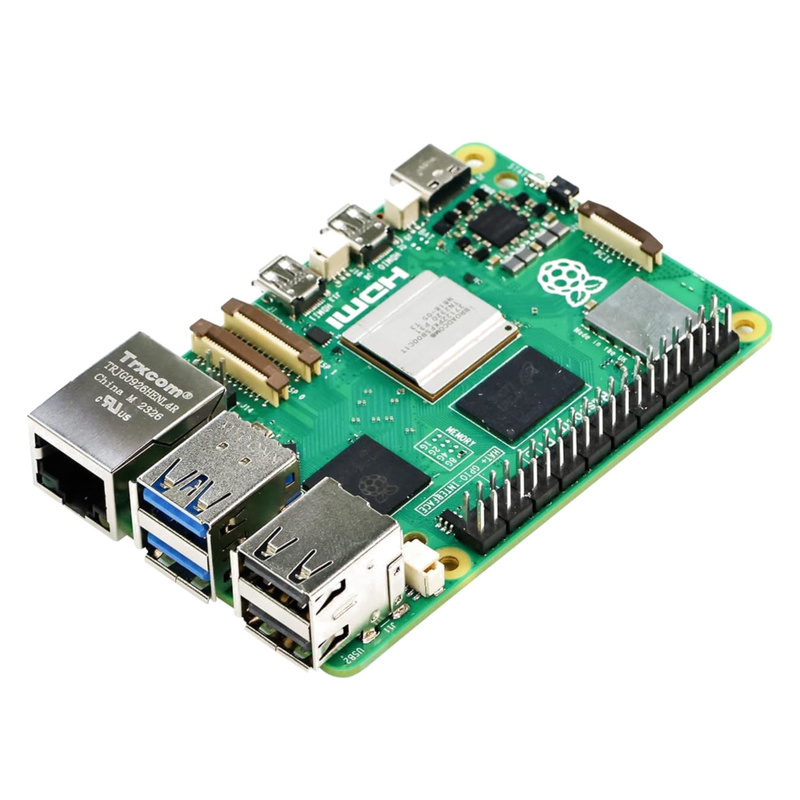

Raspberry Pi 5 Model B - 4GB RAM

Raspberry Pi 5 Model B - 4GB RAM: The Everything Computer



The Raspberry Pi 5 Model B (4GB) is the latest and most powerful generation of the world's favorite single-board computer (SBC). Built on a custom silicon platform, it delivers a 2–3x increase in CPU speed and a massive boost in graphics performance compared to the Pi 4. With a cutting-edge processor, dedicated I/O controller, and high-speed peripheral options like PCIe, the Pi 5 offers a seamless desktop experience and unparalleled performance for industrial, AI, and robotics projects.



🔧 Key Features




• Processor: Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU.

• RAM: High-speed 4GB LPDDR4X-4267 SDRAM.

• Graphics: VideoCore VII GPU (800MHz) supporting Dual 4Kp60 HDMI with HDR.

• I/O Controller: Custom Raspberry Pi RP1 "southbridge" chip for superior peripheral performance.

• High-Speed I/O: Dedicated single-lane PCIe 2.0 x1 interface (requires M.2 HAT or adapter).

• Networking: Dual-band 802.11ac Wi-Fi, Bluetooth 5.0/BLE, and Gigabit Ethernet.

• Connectivity: 2x USB 3.0 ports (simultaneous 5Gbps operation) and 2x USB 2.0 ports.
• New Features: Onboard Power Button, dedicated fan connector, and Real-Time Clock (RTC) connector.




💡 Applications




• Ideal for use as a Powerful Desktop PC or Thin Client.

• Perfect for AI/ML and Computer Vision projects due to the upgraded Image Signal Processor (ISP).

• Central compute unit for Robotics, Drones, and Advanced Automation.

• High-performance media center, gaming console emulator, or home server.




⚙️ Technical Specifications



Processor (SoC)	Broadcom BCM2712
CPU Architecture	Quad-core Arm Cortex-A76 (64-bit)
CPU Clock Speed	2.4 GHz
RAM	4GB LPDDR4X SDRAM @ 4267 MHz
GPU	VideoCore VII (800MHz, OpenGL ES 3.1, Vulkan 1.2)
USB Ports	2 × USB 3.0 (5Gbps), 2 × USB 2.0
Video Out	2 × micro-HDMI (Dual 4Kp60 HDR)
Wireless	Dual-band 802.11ac Wi-Fi / Bluetooth 5.0 (BLE)
Power Input	5V/5A DC via USB-C (PD enabled)
I/O Header	Standard 40-pin GPIO Header
Dimensions	85 mm × 56 mm



📦 Package Includes

• 1 × Raspberry Pi 5 Model B with 4GB RAM

✅ Why Choose This Board?

• Unmatched Performance: Delivers desktop-class speed and superior graphics for demanding applications.

• Future-Proof I/O: PCIe interface allows adding high-speed NVMe storage, dramatically improving boot and file-access times.

• Official Support: Backed by the Raspberry Pi Foundation’s robust OS and extensive community resources.
