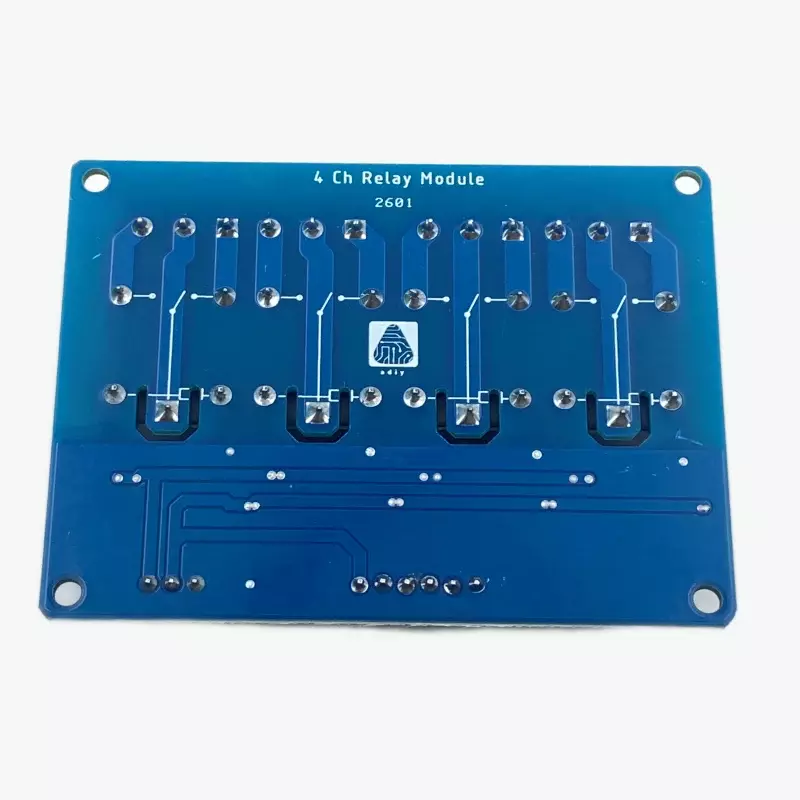

4-Channel 12V Relay Module with Optocoupler

4-Channel 12V Relay Module with Optocoupler

The 4-Channel 12V Relay Module with Optocoupler is a high-performance switching solution designed to control high-voltage AC and DC loads using low-voltage signals from microcontrollers. Whether you are building a smart home system, industrial automation, or a robotics project, this module provides the reliability and safety required for professional-grade electronics.

Equipped with advanced optocoupler isolation, this board effectively protects your sensitive control circuitry from voltage spikes, noise, and interference. With a robust switching capacity of 10A at 250V AC or 30V DC, it is the ideal choice for switching lights, motors, fans, and other heavy-duty electrical appliances.

🔧 Key Features

• Optocoupler Isolation: Ensures safe and stable operation by isolating the control signal from the load.
• High Capacity: Supports up to 10A at 250V AC or 30V DC per channel.
• Status Monitoring: Onboard LED indicators provide real-time visual feedback for each relay channel.
• Versatile Compatibility: Works seamlessly with Arduino, Raspberry Pi, PLCs, and other microcontrollers.
• Flexible Power: Features separate JD-VCC and VCC pins for independent coil and logic power supply.
• Easy Connectivity: Equipped with high-quality screw terminals for convenient and secure wire connections.

💡 Applications & Use Cases

• Home automation systems (lighting, fan control).
• Industrial equipment and machinery control.
• Motor driver and actuator switching.
• Smart device prototyping and IoT projects.
• PLC-based automation systems.

⚙️ Technical Specifications

📦 Package Includes

• 1 × 4-Channel 12V Relay Module with Optocoupler
