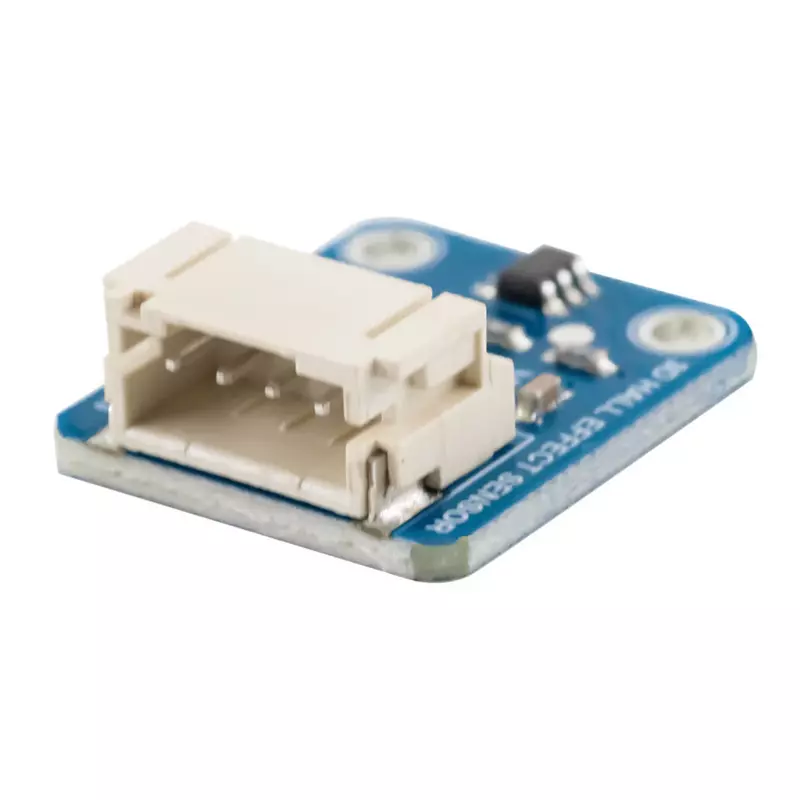

7Semi TMAG5273 4-Pin 3D Hall-Effect Sensor Breakout Module

7Semi TMAG5273 4-Pin 3D Hall-Effect Sensor Breakout Module

The 7Semi TMAG5273 4-Pin 3D Hall-effect Sensor Breakout Module is built around the high-performance Texas Instruments TMAG5273 magnetic sensor, capable of accurately measuring magnetic fields across the X, Y, and Z axes. It offers selectable magnetic ranges, integrated temperature sensing, and high-speed I2C communication, making it an excellent choice for precision magnetic field sensing applications.

Designed for embedded systems, robotics, industrial automation, position sensing, and smart devices, the module features a convenient 4-pin JST connector for easy integration. Advanced onboard signal processing, configurable averaging, and built-in temperature compensation ensure reliable performance even in demanding environments.

🔧 Features

• 3-Axis Hall-effect magnetic field sensing (X, Y, Z)
• Selectable magnetic range: ±40mT / ±80mT
• High-speed I2C communication with CRC support
• Maximum 1MHz I2C clock speed
• Integrated angle CORDIC calculation
• 20kSPS single-axis conversion rate
• Configurable averaging up to 32x for noise reduction
• User-configurable interrupt output
• Integrated temperature sensor and temperature compensation
• Factory-programmed and configurable I2C address

📋 Specifications

• Sensor IC: Texas Instruments TMAG5273
• Magnetic Axes: X, Y, Z (3-Axis)
• Magnetic Range: ±40mT / ±80mT (Selectable)
• Interface: I2C
• Connector: 4-Pin JST
• Supply Voltage: 3.3V DC
• Operating Temperature: -40°C to +125°C
• Application: Linear 3D Magnetic Field Sensing

📦 Package Includes

• 1 × 7Semi TMAG5273 4-Pin 3D Hall-effect Sensor Breakout Module
