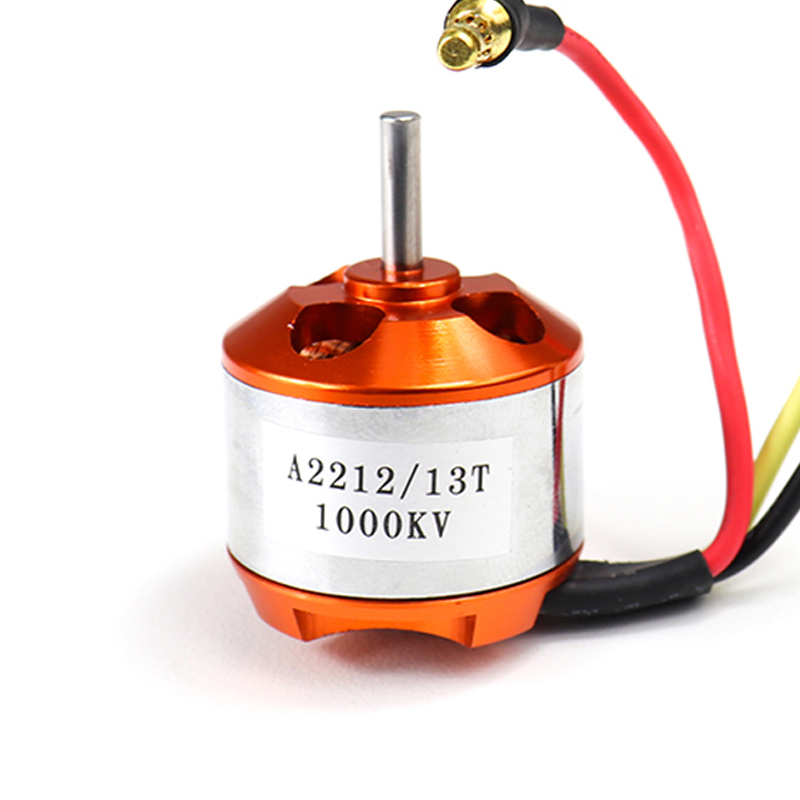

A2212 10T/13T 1000KV BLDC Drone Motor

A2212 1000 KV BLDC Brushless DC Motor for Drone (Outrunner Type)

The A2212 1000 KV BLDC Motor is the gold standard power plant for hobbyist and mid-sized drone platforms (quadcopters, hexacopters) and fixed-wing RC aircraft. As a Brushless DC (BLDC) motor, it offers vastly superior efficiency, durability, and a higher power-to-weight ratio compared to traditional brushed motors.

Its key specification is the KV rating of 1000, which translates to 1000 Revolutions Per Minute (RPM) for every volt applied. This mid-range KV is optimized for propellers in the 8-inch to 10-inch range when running on a 3S (11.1V) LiPo battery, providing a balance of high thrust and manageable current draw. The motor's outrunner design, where the housing rotates around the core, generates significant torque, making it perfectly suited for direct-drive propeller applications. This version comes conveniently pre-soldered with 3.5 mm bullet connectors for quick and reliable integration with your Electronic Speed Controller (ESC).

🔧 Key Features

• Motor Type: Brushless DC (BLDC) Outrunner.

• KV Rating (Speed Constant): 1000 KV (RPM / V).

• Recommended Battery: 2S to 3S LiPo (7.4V to 11.1V).

• Max Current (3S LiPo): Typically 12A to 15A peak (Varies by prop size).

• Connectors: Pre-soldered 3.5mm Male Bullet Connectors (3 wires).

• Efficiency: High efficiency BLDC design for longer flight times.


💡 Applications

• Quadcopters and other multi-rotor drones.

• Fixed-wing RC Airplanes (Electric Propulsion).

• DIY Robotics and Actuation systems requiring high speed.

• Gimbal stabilization and Camera Drones (smaller models).


⚙️ Technical Specifications Summary

📦 Package Includes

• 1 × A2212 1000 KV BLDC Motor with Connectors

• 1 × Cross Motor Mount

• 1 × Propeller Adapter and Mounting Hardware
