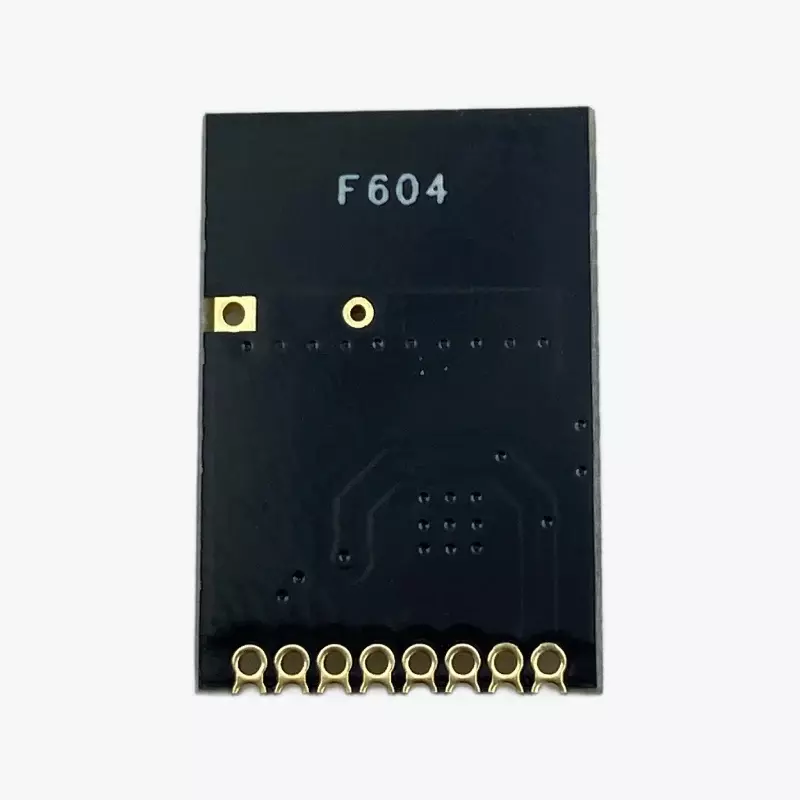

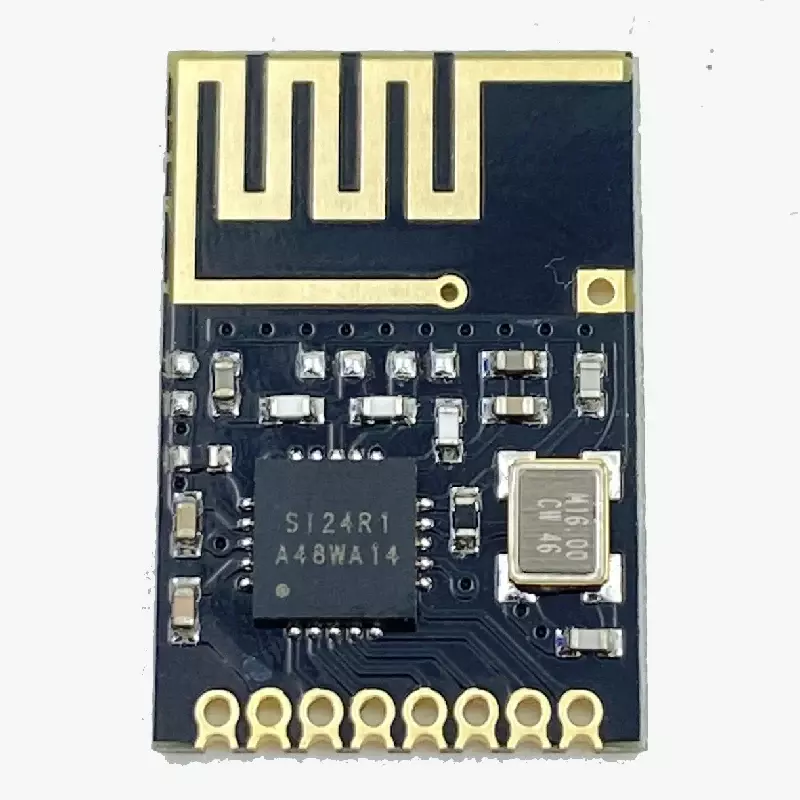

AI-Thinker NF-03 Transceiver Module – 2.4G Wireless (SPI Interface, GFSK/FSK) – IoT Communication

Overview

The AI-Thinker NF-03 Wireless Transceiver is a versatile 2.4G wireless module designed for seamless communication between multiple modules in Internet of Things (IoT) applications. Its compact size, integrated on-board antenna, and pure hardware design make it an excellent choice for sending and receiving data to and from microcontrollers without the need for additional SMD antennas. Boasting high airspeed up to 2Mbps, an efficient SPI interface, and robust stability, the NF-03 delivers high-cost performance and excellent spectrum test characteristics. Built with industrial-grade components, this module is reliable for various demanding wireless communication projects.

Technical Specifications

How It Works

The NF-03 module operates on the 2.4GHz ISM band, utilizing GFSK (Gaussian Frequency Shift Keying) and FSK (Frequency Shift Keying) modulation methods for robust and efficient wireless data transmission. It communicates with a host microcontroller via a standard 4-wire SPI (Serial Peripheral Interface) bus, allowing for high-speed data exchange up to 10MHz. This pure hardware module handles the RF protocol stack, simplifying integration into various projects. The integrated RSSI (Received Signal Strength Indication) output provides valuable information about signal quality.

Key Features

• Compact 2.4G wireless module with on-board antenna, eliminating the need for external SMD antennas.
• Supports high airspeed data rates: 2Mbps, 1Mbps, and 250Kbps.
• Utilizes a four-wire SPI interface, capable of speeds up to 10MHz.
• Features GFSK / FSK modulation for reliable wireless communication.
• Wide supply voltage range from 1.9V to 3.6V.
• High receiving sensitivity of <-83dBm @ 2MHz and maximum transmit power of +7dBm.
• Includes 1bit RSSI output for signal strength monitoring.
• High stability, excellent cost-performance, and good spectrum test characteristics.
• Built with all industrial-grade components for enhanced reliability.

Compatible Platforms

• Arduino (Uno, Mega, ESP32, ESP8266)
• Raspberry Pi (all models)
• STM32 Microcontrollers
• Other microcontrollers with SPI interface

Applications

• Wireless mouse and keyboard
• Wireless remote control systems
• Somatosensory equipment
• Active RFID (Radio-Frequency Identification)
• NFC (Near Field Communication) applications
• Low-power self-organizing network nodes
• Wireless sensor networks (WSN)
• General Internet of Things (IoT) projects
• Automation systems
• Embedded engineering projects

Assembly / Usage Notes

• Ensure the supply voltage is within the 1.9V to 3.6V range to prevent damage to the module.
• Connect the four-wire SPI interface (MOSI, MISO, SCK, CS) correctly to your microcontroller.
• Refer to the official Ai-Thinker NF-03 datasheet for detailed pinout, register configuration, and example usage.
• Proper grounding is essential for stable RF performance.
• Consider antenna placement for optimal signal range and quality.

Sample Code (Arduino Pseudo-Code)

#include <SPI.h>\n\n// Define NF-03 pins\n#define NF03_CS_PIN   10\n#define NF03_CE_PIN   9\n\nvoid setup() {\n  Serial.begin(115200);\n  SPI.begin();\n  SPI.setBitOrder(MSBFIRST);\n  SPI.setDataMode(SPI_MODE0);\n  SPI.setClockDivider(SPI_CLOCK_DIV8); // Adjust as needed\n\n  pinMode(NF03_CS_PIN, OUTPUT);\n  pinMode(NF03_CE_PIN, OUTPUT);\n  digitalWrite(NF03_CS_PIN, HIGH);\n  digitalWrite(NF03_CE_PIN, LOW);\n\n  Serial.println("NF-03 Initialized. Ready for communication.");\n  // Further initialization for NF-03 registers (e.g., power mode, data rate)\n  // This would involve writing specific commands via SPI.\n}\n\nvoid loop() {\n  // Example: Send data\n  // digitalWrite(NF03_CS_PIN, LOW);\n  // SPI.transfer(command_byte);\n  // SPI.transfer(data_byte);\n  // digitalWrite(NF03_CS_PIN, HIGH);\n\n  // Example: Receive data\n  // digitalWrite(NF03_CS_PIN, LOW);\n  // byte received_data = SPI.transfer(read_command);\n  // digitalWrite(NF03_CS_PIN, HIGH);\n  // Serial.print("Received: ");\n  // Serial.println(received_data, HEX);\n\n  delay(1000);\n}\n

Package Contents

• 1 × AI-Thinker NF-03 Transceiver Module
