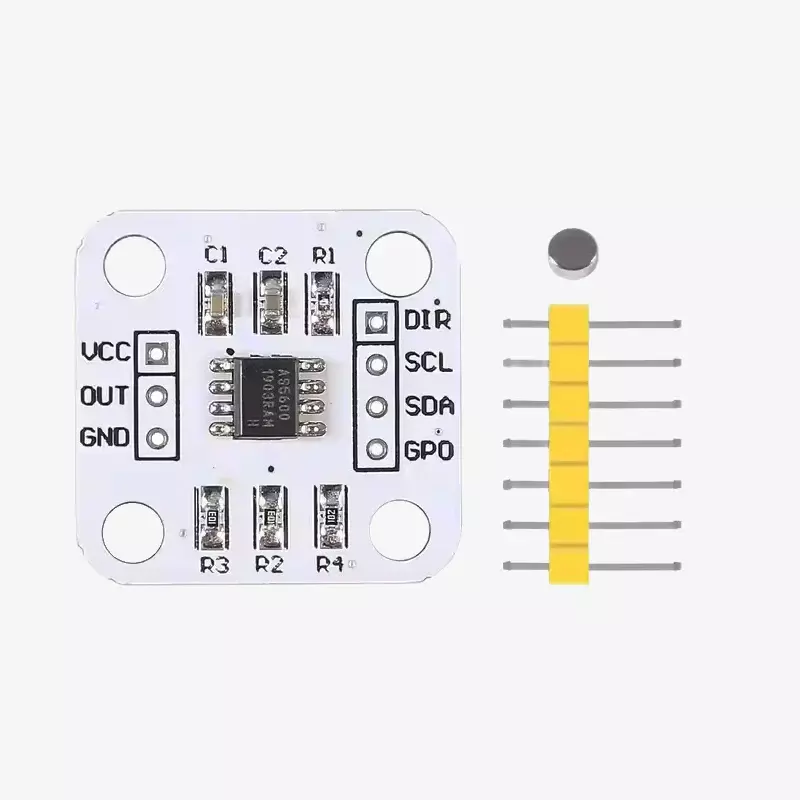

AS5600 Magnetic Angle Encoder Sensor Module

AS5600 Magnetic Angle Encoder Sensor Module

The AS5600 Magnetic Angle Encoder Sensor Module is a high-performance, non-contact magnetic rotary position sensor designed for precision applications. By utilizing a magnetic field to detect rotational angles, it eliminates mechanical wear, ensuring long-term reliability and accuracy in demanding environments.

This module offers a high 12-bit resolution and supports a full 360-degree detection range, making it perfect for robotics, motor control, and industrial feedback systems. With its simple I2C interface and wide voltage compatibility, it integrates seamlessly into any microcontroller-based project.

🔧 Key Features

• High Precision: 12-bit resolution for detailed angle measurement.
• Contactless Sensing: Magnetic field detection ensures no mechanical wear.
• Wide Voltage: Operates efficiently between 3.3V and 5.5V.
• I2C Interface: Easy communication with Arduino, ESP32, and other MCUs.
• Full Rotation: Capable of 360-degree angle detection.
• Energy Efficient: Low power consumption suitable for portable applications.

💡 Applications & Use Cases

• Robotic arm joint position sensing
• Motor speed and position control
• Industrial automation feedback systems
• DIY robotics and mechatronics projects
• Human-machine interface (HMI) knobs

⚙️ Technical Specifications

📦 Package Includes

• 1 × AS5600 Magnetic Angle Encoder Sensor Module
