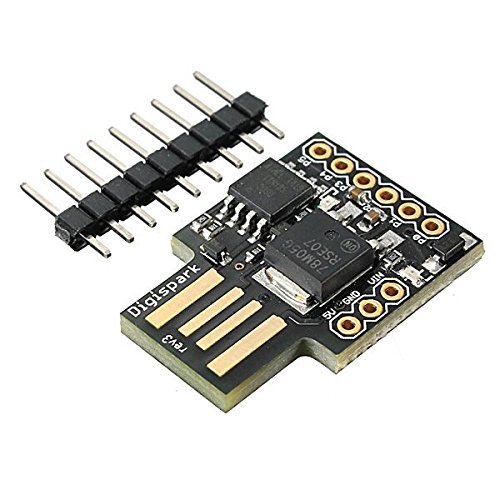

ATTINY85 USB Development Board
- SKU: 31126 - Ultra-compact, inexpensive development board featuring the ATtiny85 Microcontroller.
- Directly programmable using the Arduino IDE 1.0+ environment (OSX/Windows/Linux).
- Power selectable via USB or an External Source (7-16V to 5V) via the onboard regulator.
- Offers 6 I/O Pins and 8 KB Flash Memory (approx. 6KB usable after bootloader).
- Built-in support for I2C and SPI protocols via the Universal Serial Interface (USI).
- Ideal for small, permanent projects where space and cost are primary concerns.
Product Details
ATTINY85 USB Development Board - Digispark Compatible
The ATTINY85 USB Development Board is an extremely compact and affordable solution for creating small, embeddable projects. It leverages the power and simplicity of the ATtiny85 AVR microcontroller and is fully compatible with the popular Arduino IDE (version 1.0+), allowing users to easily upload sketches using the V-USB software implementation.
Despite its minuscule size (26x18mm), this board is highly versatile. It features flexible power options, including powering directly via USB or through an external source (7-16V DC), thanks to the onboard 150 mA, 5V regulator. The board provides access to 6 I/O pins; however, two of these pins are shared with the USB communication interface. If your final program does not require active USB serial communication, all 6 pins are available for general-purpose use. With 8 KB of Flash Memory (approximately 6 KB available after the bootloader), and native support for both I2C and SPI through the USI module, the board is perfectly suited for small sensor reading, basic control tasks, and minimalist electronics projects.
🔧 Key Features
- SKU: 31126.
- Microcontroller: Atmel ATtiny85.
- Programming: Directly via USB with Arduino IDE compatibility.
- I/O Pins: 6 (Shared with USB functionality).
- Memory: 8 KB Flash (6 KB usable).
- Communication: I2C and SPI supported via USI module.
- Power Indicators: Onboard Power LED and Test/Status LED.
💡 Power and Voltage Details
- USB Power: 5V DC.
- External Power: 7V to 16V DC (Input automatically regulated to 5V).
- Onboard Regulator: 150 mA output current at 5V.
⚙ Technical Specifications Summary
| Item Type | Development Board |
| Model | ATTINY Series |
| Microcontroller | ATtiny85 |
| Flash Memory | 8 KB (approx. 6 KB available) |
| I/O Pins | 6 |
| I2C / SPI Support | Yes (via USI) |
| Power Regulator Output | 5V @ 150 mA |
| External Input Voltage Range | 7V to 16V DC |
| Weight (g) | 4 g |
📦 Package Includes
- 1 × ATTINY85 USB Development Board
