Generic

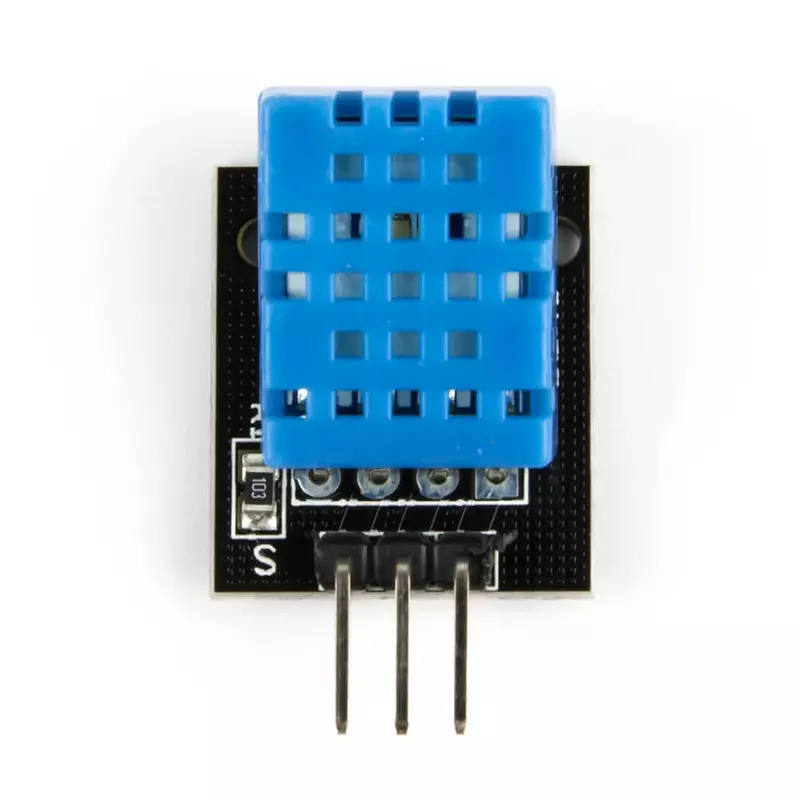

DHT11 Temperature and Humidity Sensor Module
- Accurately measures temperature ($0^\circ\text{C}$ to $50^\circ\text{C}$) and humidity ($20\%$ to $95\%$ RH)
- Features a simple single-wire digital interface for easy microcontroller integration
- Comes as a module with onboard pull-up resistor and filter capacitor (3-pin simplicity)
- Low power consumption: ideal for battery-powered IoT and weather station projects
- Fully compatible with Arduino, Raspberry Pi, ESP32, and other standard microcontrollers
- Excellent long-term stability and anti-interference ability
Non-returnable
SKU - YTXZC000014
₹69.03
₹89.00
In stock:
10
Choose Quantity:
Share:
Product Details
DHT11 Digital Temperature and Humidity Sensor Module
The DHT11 Sensor Module is a cost-effective and reliable solution for obtaining accurate, pre-calibrated digital measurements of ambient temperature and relative humidity. The module version simplifies integration by including the necessary pull-up resistor and filtering capacitor on a small PCB, offering a straightforward 3-pin interface for fast connection to any microcontroller like Arduino or Raspberry Pi.
🔧 Key Features
- High Reliability: Uses a resistive-type humidity component and an NTC thermistor.
- Digital Output: Sends data via a single-wire serial interface, requiring only one I/O pin.
- Wide Voltage Range: Operates stably on 3.3V to 5.5V DC supply.
- Low Power: Very low current consumption, making it perfect for power-sensitive applications.
- Accuracy: Provides reliable readings with $\pm 2^\circ\text{C}$ temperature and $\pm 5\% \text{ RH}$ humidity accuracy.
- Factory Calibrated: No complex calibration routines are needed by the end-user.
💡 Applications
- Essential component for Home Weather Stations and environmental monitoring.
- Used in HVAC, Humidifier, and Dehumidifier control systems.
- Perfect for Greenhouse and Smart Agriculture projects for climate control.
- Ideal for Educational and DIY electronics projects due to its simple interface.
⚙️ Technical Specifications
| Sensor Type | Capacitive Humidity & NTC Thermistor |
| Operating Voltage | 3.3V to 5.5V DC |
| Temperature Range | $0^\circ\text{C}$ to $50^\circ\text{C}$ |
| Temperature Accuracy | $\pm 2^\circ\text{C}$ |
| Humidity Range | $20\% \text{ RH}$ to $95\% \text{ RH}$ |
| Humidity Accuracy | $\pm 5\% \text{ RH}$ |
| Output Type | Digital Single-Wire Data |
| Sampling Rate (Min) | $1 \text{ Hz}$ (Once every 1-2 seconds) |
| Module Dimensions (L x W) | $\approx 3.2 \text{ cm} \times 1.4 \text{ cm}$ |
📦 Package Includes
- 1 × DHT11 Temperature and Humidity Sensor Module (3-Pin)
Specifications
- TypeTemperature and Humidity Sensor
- Operating Voltage3.3V – 5V
- Temperature Range0°C – 50°C
- Output TypeDigital
- Sampling Rate1 Hz
- InterfaceSingle-Wire Serial
