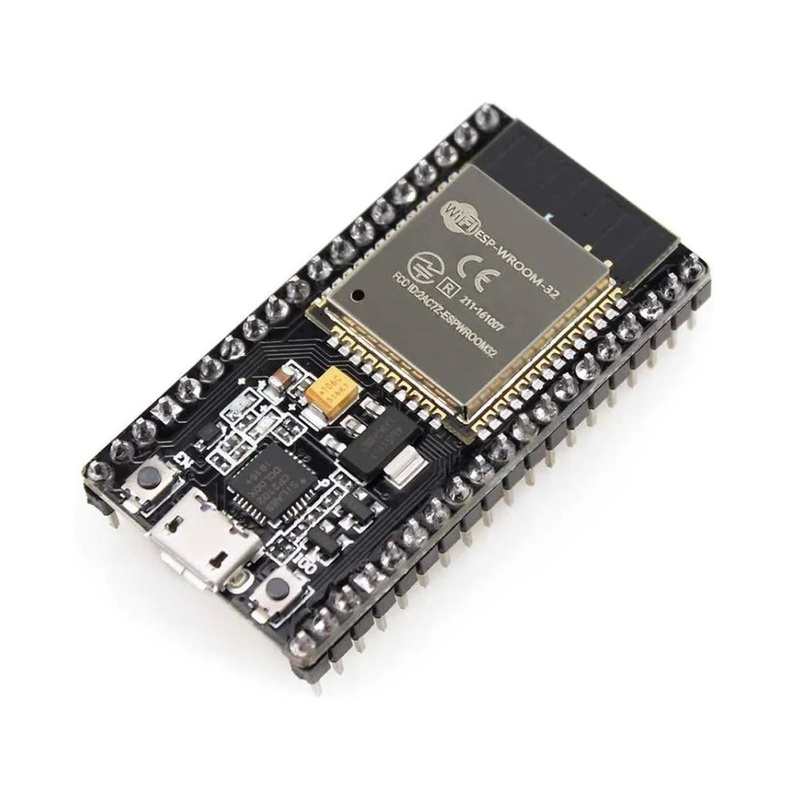

ESP32-WROOM-32 Module

ESP32-WROOM-32 Wi-Fi and Bluetooth Module

The ESP32-WROOM-32 is a compact Espressif MCU module for connected embedded designs. It combines an ESP32-D0WDQ6 dual-core Xtensa LX6 processor (up to 240 MHz), 4 MB SPI flash, a PCB antenna, 2.4 GHz Wi-Fi, Bluetooth 4.2 BR/EDR and Bluetooth Low Energy.

Key features

• 2.4 GHz Wi-Fi 802.11 b/g/n and Bluetooth 4.2 Classic and LE
• 4 MB external SPI flash; dual-core 32-bit Xtensa LX6 CPU up to 240 MHz
• Module supply: 3.0–3.6 V DC; use a suitable regulated power supply
• UART, SPI, I2C, I2S, ADC, DAC, PWM and touch-capable interfaces, subject to pin allocation
• On-board PCB antenna

Applications

Suitable for wireless sensors, home automation, robotics and custom IoT boards. This is a module for integration into a host PCB, not a USB development board.

Package contents

1 × ESP32-WROOM-32 module.

• Manufacturer
  Espressif Systems
• Model
  ESP32-WROOM-32
• Product Type
  Wi-Fi + Bluetooth MCU module
• SoC
  ESP32-D0WDQ6
• CPU Architecture
  Xtensa 32-bit LX6 / dual-core
• Maximum CPU Clock
  240 MHz
• Flash Memory
  4 MB external SPI flash
• Wi-Fi
  2.4 GHz IEEE 802.11 b/g/n
• Bluetooth
  Bluetooth v4.2 BR/EDR and Bluetooth Low Energy
• Antenna
  On-board PCB antenna
• Power Supply
  3.0–3.6 V DC
• Operating Temperature
  −40 to 85 °C
• Module Dimensions
  18 × 25.5 × 3.1 mm
• Host Peripherals
  UART / SPI / I2C / I2S / ADC / DAC / PWM and capacitive touch
