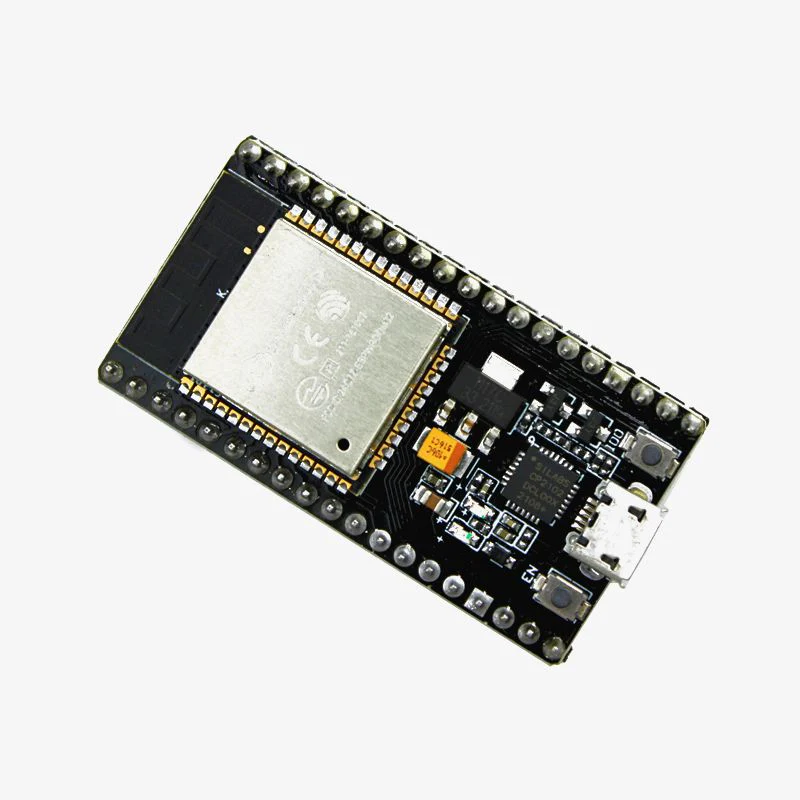

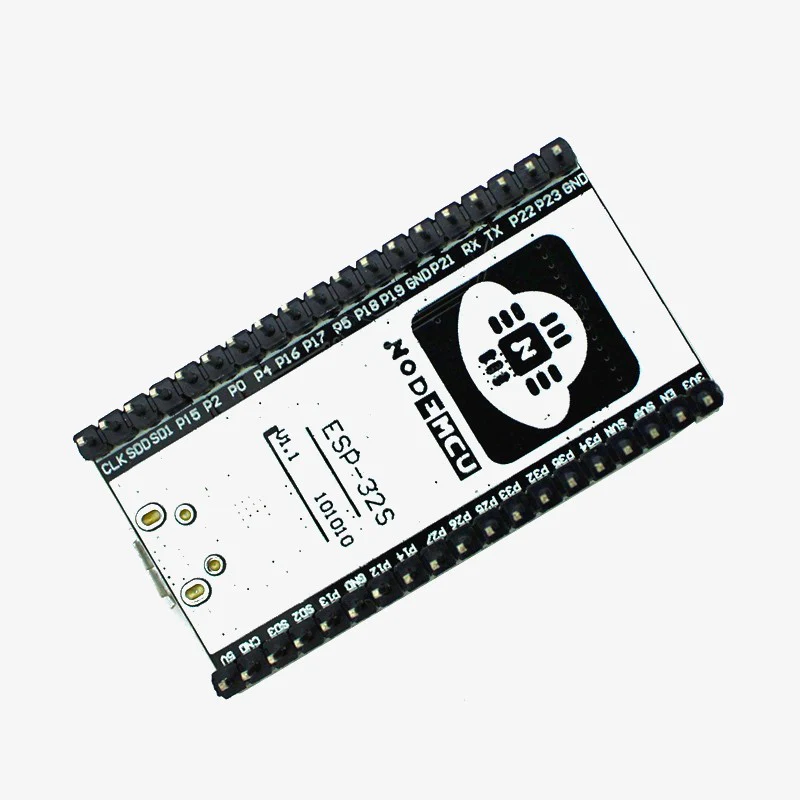

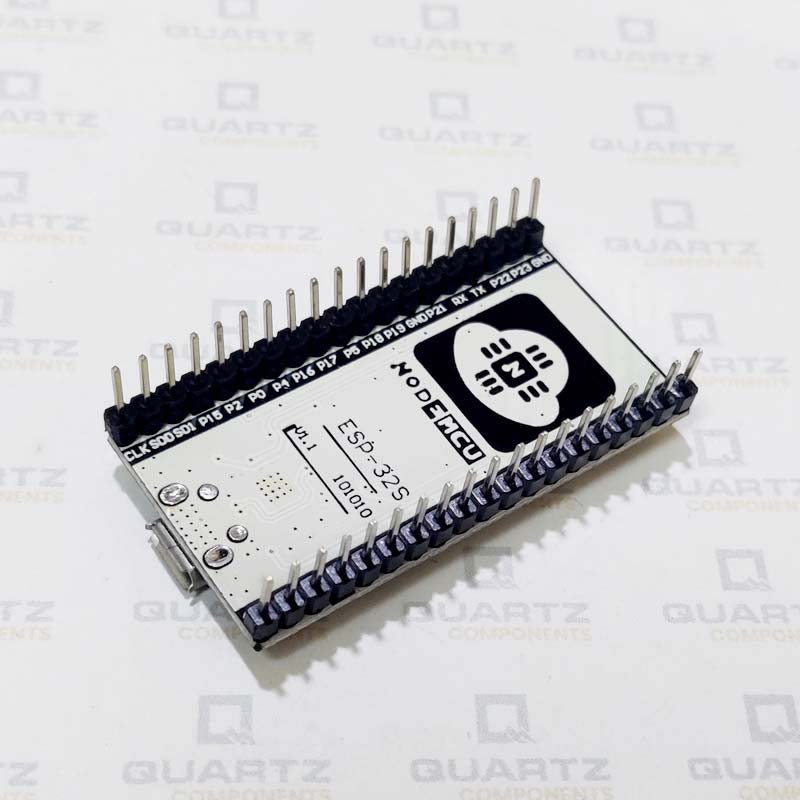

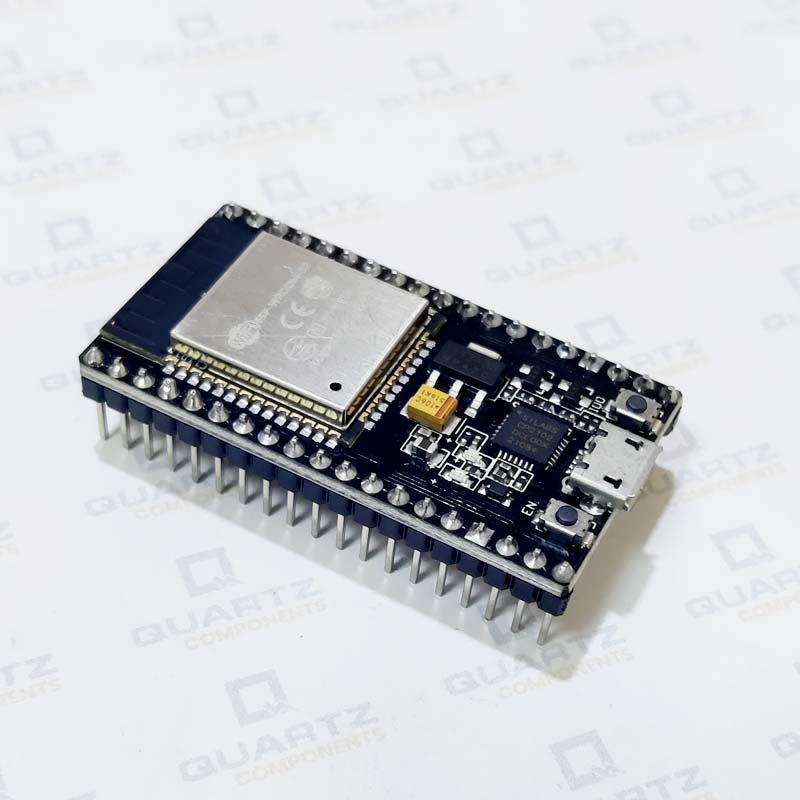

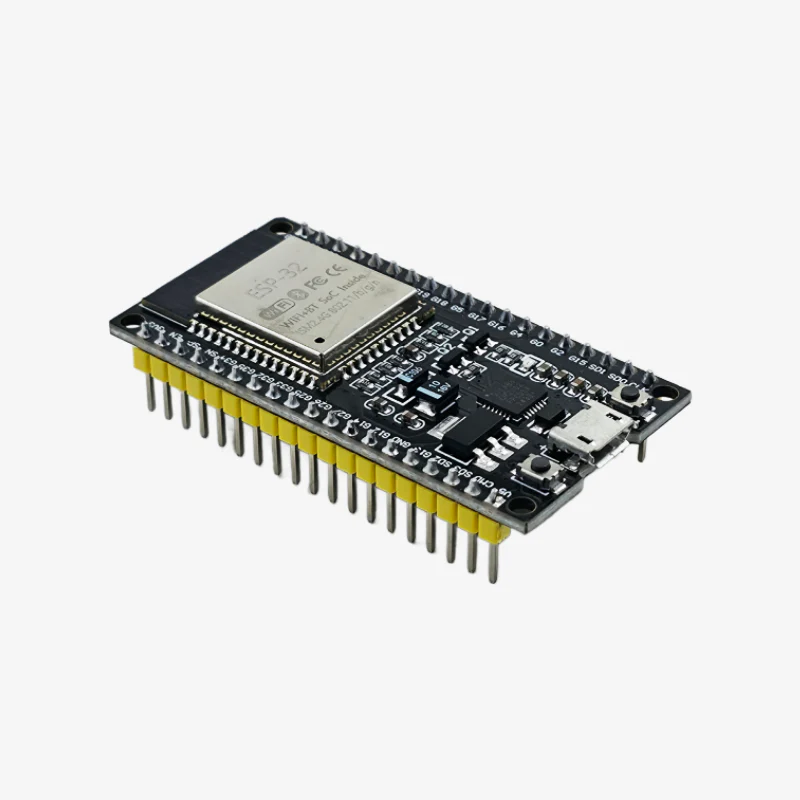

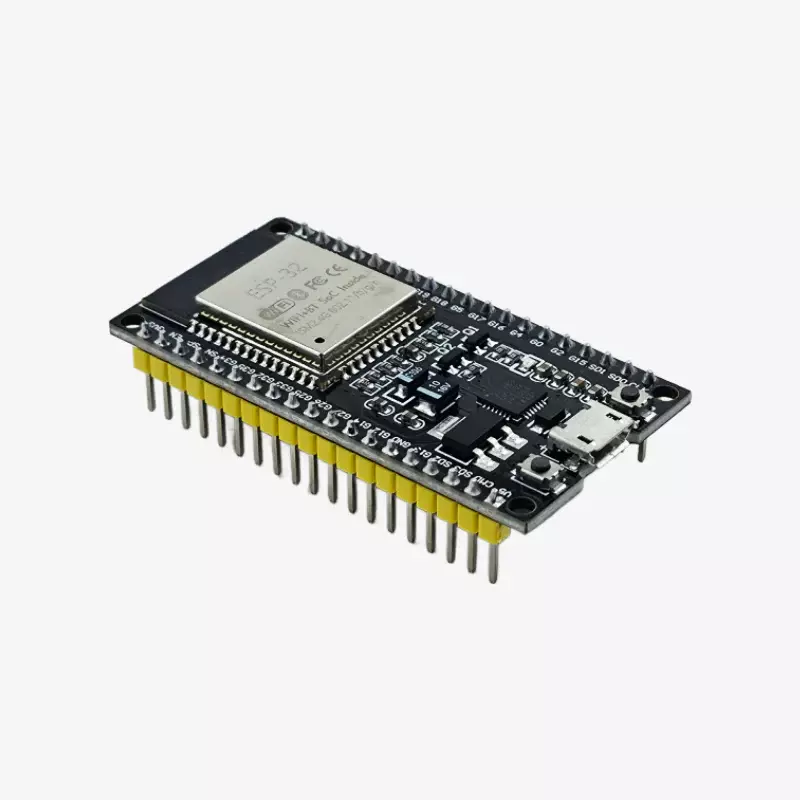

ESP32S 38Pin Development Board (WIFI+BLUETOOTH)

ESP32S 38Pin Development Board (WiFi + Bluetooth)

The ESP32S Development Board is a powerful and feature-rich microcontroller board based on the ESP32-WROOM-32 module from Espressif Systems. Equipped with a dual-core Tensilica Xtensa LX6 processor, integrated Wi-Fi, and Bluetooth connectivity, it provides an excellent platform for developing IoT, wireless communication, automation, and embedded system applications.

The board includes a CP2102 USB-to-UART converter for easy programming and debugging through a Micro USB connection. With support for Arduino IDE, ESP-IDF, MicroPython, and Lua, developers can rapidly prototype and deploy innovative projects. Its low-power architecture makes it ideal for battery-powered and portable devices.

🔧 Features

• Dual-Core Tensilica Xtensa LX6 Processor
• Integrated 2.4GHz Wi-Fi and Bluetooth 4.2 BLE
• CP2102 USB-to-UART Interface
• Ultra-Low Power Coprocessor for Power-Efficient Applications
• Supports Arduino IDE, ESP-IDF, MicroPython, and Lua
• Multiple Communication Interfaces: SPI, I2C, I2S, CAN, UART
• Secure Boot and Flash Encryption Support
• On-board Reset and Enable Buttons
• Suitable for IoT, Robotics, Home Automation, and Industrial Applications

📋 Specifications

• Main Processor: Tensilica Xtensa 32-bit LX6
• CPU Frequency: Up to 240 MHz
• Operating Voltage: 3.3V
• Wireless Connectivity: Wi-Fi 802.11 b/g/n/e/i
• Wi-Fi Speed: Up to 150 Mbps @ 2.4GHz
• Bluetooth: Bluetooth v4.2 BR/EDR + BLE
• Technology: TSMC Ultra-Low Power 40nm
• GPIO Current: 40mA per I/O Pin
• 3.3V Pin Current: 50mA
• Communication Protocols: SPI, I2C, I2S, CAN, UART
• Security Features: Secure Boot, Flash Encryption, Cryptographic Hardware Acceleration
• Programming Interface: Micro USB via CP2102

📦 Package Includes

• 1 × ESP32S 38Pin Development Board (WiFi + Bluetooth)
