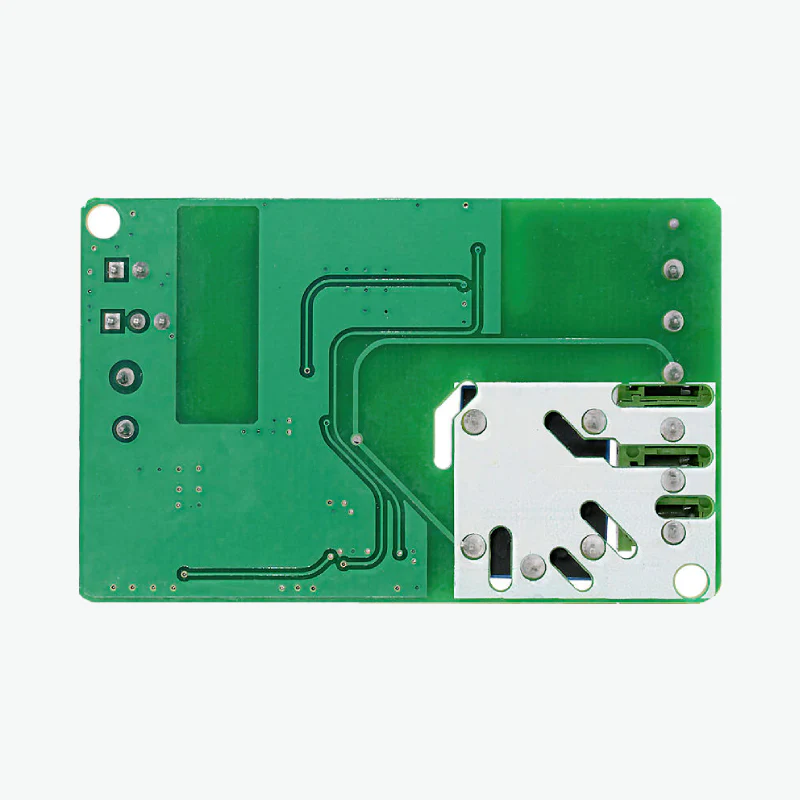

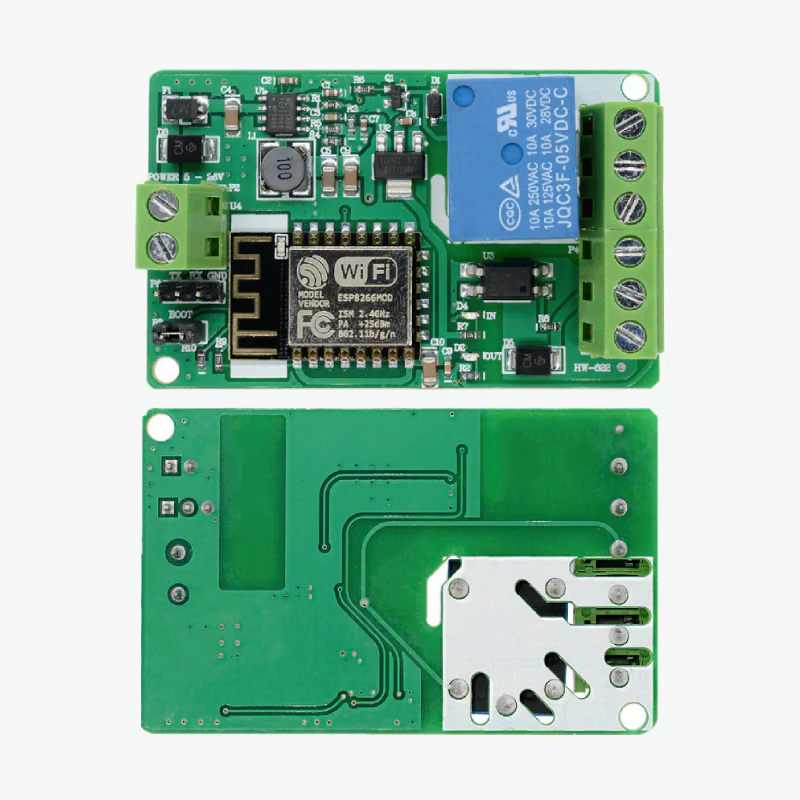

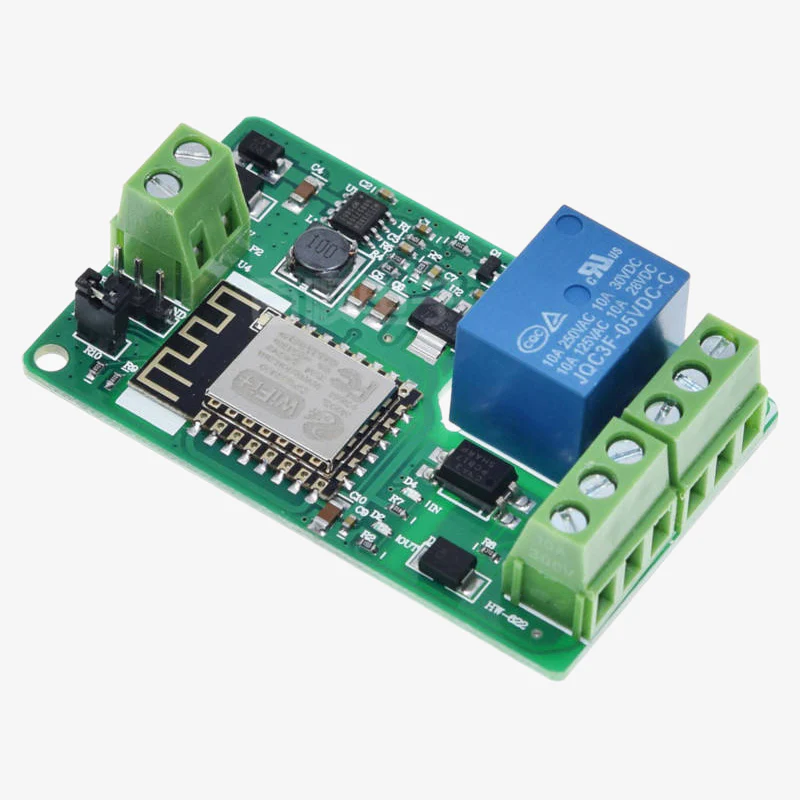

ESP8266-12E 10A 220V Network Relay WiFi Module

ESP8266-12E 10A 220V Network Relay WiFi Module

The ESP8266-12E 10A 220V Network Relay WiFi Module is a powerful IoT-enabled switching solution designed for wireless control of electrical appliances and automation systems. Built around the popular ESP8266-12E WiFi module, it enables remote operation of connected devices through mobile applications, web interfaces, or custom firmware.

The module features an onboard high-current relay capable of switching loads up to 10A at 220V AC. Its wide input voltage range of 7V to 30V DC makes it suitable for various power supply configurations. Whether used in smart homes, industrial automation, security systems, or custom IoT projects, this module provides a reliable and flexible wireless control solution.

🔧 Features

• Built-in ESP8266-12E WiFi module for wireless control
• High-power relay rated up to 10A for 220V AC loads
• Wide DC input voltage range: 7V – 30V
• Supports remote control via WiFi network
• Compatible with IoT platforms and custom firmware
• Can be controlled using mobile app or web interface
• Ideal for smart home automation and remote switching
• Stable operation with onboard isolation and protection
• Compact PCB design for easy mounting
• Supports manual and automatic control modes

📋 Specifications

• Module Type: WiFi Network Relay Module
• Controller Chip: ESP8266-12E
• Relay Rating: 10A @ 220V AC
• Input Voltage: DC 7V – 30V
• Output Type: Relay Switching
• Wireless Standard: IEEE 802.11 b/g/n
• Communication: WiFi
• Control Method: App / Web / Serial Command
• Operating Frequency: 2.4GHz
• Trigger Mode: High/Low Level Control
• Load Type: AC/DC Appliances
• Isolation Type: Relay-based Electrical Isolation
• Operating Temperature: -20°C to +70°C
• Mounting Type: PCB Mount with Screw Terminals

📦 Package Includes

• 1 × ESP8266-12E 10A 220V Network Relay WiFi Module
