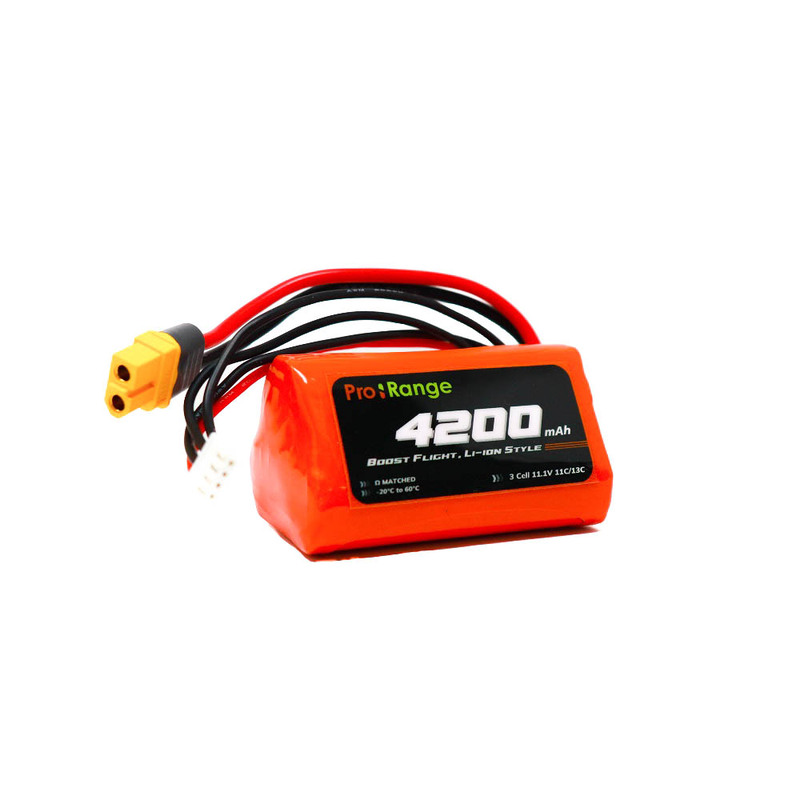

INR 21700 P42A 11.1V 4200mAh 3S1P Li-ion Drone Battery Pack
- SKU: 1424901 - High-performance 3S1P (3 series, 1 parallel) Li-ion battery pack for drones and high-current applications.
- Built with premium INR 21700 P42A cells, offering exceptional power density and safety.
- Nominal Voltage: 11.1V (suitable for 3S systems) with a 4200 mAh nominal capacity.
- Features a high-rate continuous 40A (9.5C) and burst 50A (11.9C) discharge capability.
- Includes a 4-Pin JST XH connector for balance charging and a triangular form factor for drone integration.
- Ideal power source for mid-sized FPV drones, fixed-wing aircraft, and specialized robotics.
Product Details
Pro-Range INR 21700 P42A 11.1V 4200mAh 3S1P High-Discharge Li-ion Drone Battery Pack (SKU: 1424901)
The Pro-Range 3S1P Drone Battery Pack is engineered for demanding applications that require a lightweight, high-capacity, and high-discharge power source. It is constructed using three INR 21700 P42A cells connected in series (3S), a renowned cell known for its low internal resistance and excellent performance under continuous high load.
With a Nominal Voltage of 11.1V and a generous 4200mAh Nominal Capacity, this pack delivers substantial flight time. The battery is capable of a high continuous discharge rate of 40 Amps (approximately 9.5C) and a burst rate of 50 Amps (approximately 11.9C), ensuring your drone's motors receive the necessary current for aggressive maneuvers and stable flight. The unique triangular form factor is specifically designed for optimal fit and weight distribution within many standard drone frames. The pack includes necessary connectors for safe operation: a main discharge connector (not explicitly specified but typically XT60 or XT90 for drones) and a 4-Pin JST XH connector for cell balancing during charging.
🔧 Key Features
- SKU: 1424901.
- Cell Type: INR 21700 P42A High-Drain Li-ion.
- Configuration: 3S1P (3 cells in Series, 1 Parallel string).
- Nominal Voltage: 11.1V (Max Charge: 12.6V, Min Discharge: 9.0V).
- Nominal Capacity: 4200 mAh.
- Continuous Discharge: 40A (Approx. 9.5C).
- Max Burst Discharge: 50A (Approx. 11.9C).
- Form Factor: Triangle Shape (optimized for drone chassis).
💡 Safety and Operation
- Requires a compatible Li-ion or Li-Po Balance Charger.
- Never discharge below 3.0V per cell (9.0V total).
- Store at approximately 3.8V per cell for long-term safety.
- Avoid puncture, crushing, or charging unattended.
⚙ Technical Specifications Summary
| Battery Chemistry | Lithium-ion (Li-ion) |
| Configuration | 3S1P |
| Nominal Voltage (V) | 11.1 V |
| Nominal Capacity (mAh) | 4200 mAh |
| Continuous Discharge | 40 A |
| Max Discharge (Burst) | 50 A |
| Discharge Rate (C-Rating) | ~11C (Burst) |
| Charge Connector | 4 Pin JST XH (for Balance) |
| Approximate Weight (GM) | ~210 g |
| Price (INR) | ₹ 21,700 (INR) |
📦 Package Includes
- 1 × Pro-Range INR 21700 P42A 11.1V 4200mAh 3S1P Li-ion Drone Battery Pack
Specifications
- Product TypeHigh-discharge lithium-ion battery pack
- Cell ManufacturerE-One Moli Energy / Molicel
- Cell ModelINR-21700-P42A
- Cell ChemistryINR lithium-ion
- Cell Format21700 cylindrical
- Pack Configuration3S1P
- Cell Count3
- Storefront Listed Nominal Voltage11.1 V
- Cell Datasheet Nominal Voltage3.6 V per cell / 10.8 V for 3S
- Full-Charge Voltage12.6 V
- Typical Capacity4200 mAh
- Minimum Cell Capacity4000 mAh
- Nominal Energy46.5 Wh (three 15.5 Wh cells)
- Listed Pack Continuous Discharge40 A / limited by pack assembly and connector
- Cell Continuous Discharge Rating45 A per manufacturer datasheet
- Listed Burst Discharge50 A / storefront pack claim
- Balance Connector4-pin JST-XH
- Listed Pack Dimensions75 × 43 × 22 mm
- Listed Pack Weight225 g
- Cell Temperature RangeCharge 0–45 °C / discharge −40–60 °C
