L298N 2A Dual H-Bridge Motor Driver Module
- L298N based dual H-bridge motor driver
- Drives two DC motors or one stepper motor
- Supports PWM speed and direction control
- Onboard 5V regulator and screw terminals
- Ideal for Arduino, robotics, and automation projects
Non-returnable
SKU - YTX25268060
₹134.52
₹201.78
In stock:
0
Choose Quantity:
Share:
Product Details

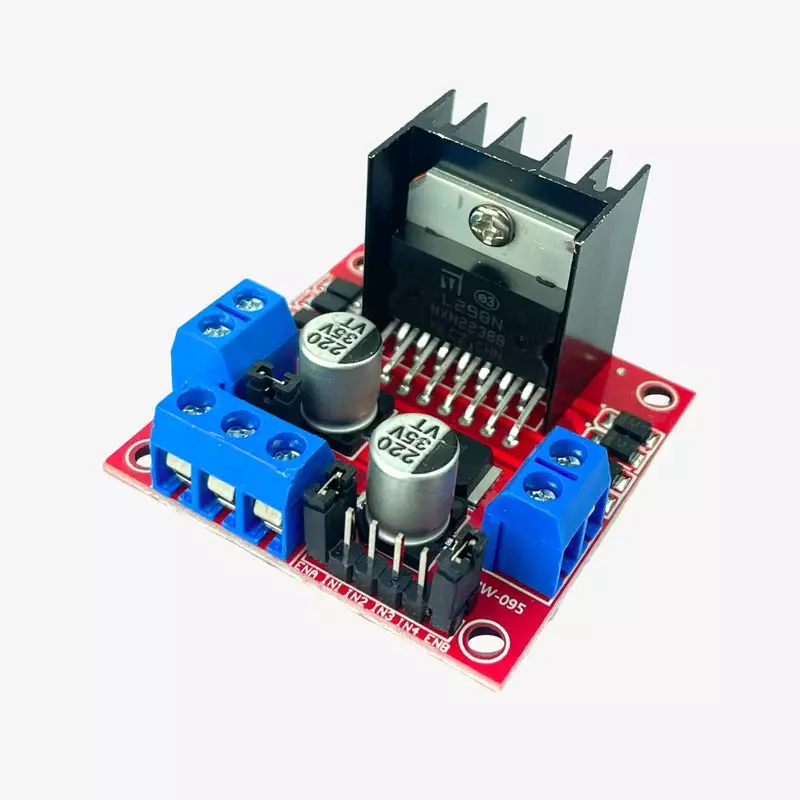

L298N 2A Dual H-Bridge Motor Driver Module
The L298N Motor Driver Module is a widely used dual H-bridge driver board designed to control DC motors and stepper motors in robotics and automation projects. It supports direction and speed control via PWM and provides stable motor driving with onboard regulation and heat dissipation.
🔧 Key Features
- Dual H-bridge configuration using L298N IC.
- Drives two DC motors or one stepper motor.
- Motor supply voltage range: 5V–35V.
- Logic voltage: 5V.
- Onboard 5V regulator (jumper selectable).
- Includes heat sink for improved thermal performance.
⚙️ Technical Specifications
| Driver IC | L298N |
| Motor Channels | 2 |
| Max Current | 2A per channel |
| Motor Voltage | 5V – 35V |
| Logic Voltage | 5V |
| Control | Digital / PWM |
📦 Package Includes
- 1 × L298N 2A Motor Driver Module with Heat Sink
