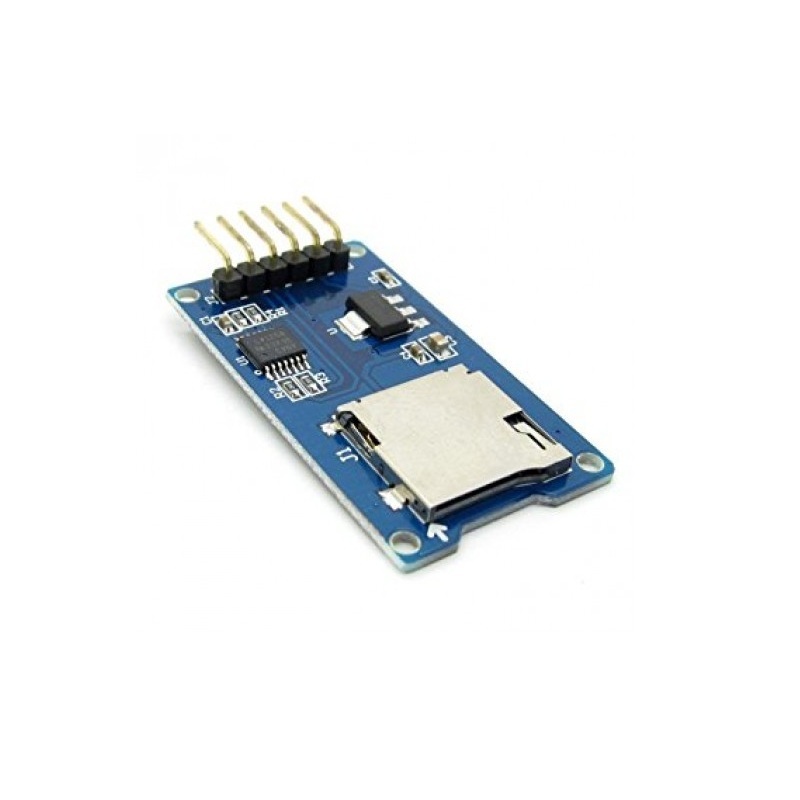

Micro SD Card Reader Module
- SKU: 11566 - Standard Micro SD Card Reader Module for adding data storage capabilities to microcontroller projects.
- Features a wide Input Supply Voltage of 4.5V to 5.5V and includes an on-board 3.3V voltage regulator for stable card power.
- Communicates using the high-speed SPI protocol via the MISO, MOSI, SCK, and CS control interface pins.
- Compact design with 4 M2 screw positioning holes for secure mounting.
- Compatible with Micro SD and Micro SDHC cards for logging sensor data, storing images, or loading configuration files.
Product Details
Micro SD Card Reader Module with SPI Interface and 3.3V Regulator (SKU: 11566)
The Micro SD Card Reader Module is an essential component for any embedded project requiring persistent, high-capacity data storage. It provides a simple and reliable way to interface Micro SD cards with microcontrollers like Arduino, ESP32, or Raspberry Pi Pico.
This module operates using the fast Serial Peripheral Interface (SPI) protocol, requiring connection to the MISO (Master In Slave Out), MOSI (Master Out Slave In), SCK (Serial Clock), and CS (Chip Select) pins on the host microcontroller. A key feature is the on-board 3.3V voltage regulator, which ensures the Micro SD card receives the correct operating voltage, while the module itself can be conveniently powered directly from a standard 5V DC supply (range 4.5V to 5.5V). The pinout also includes GND and VCC. Its small size and pre-drilled M2 mounting holes make integration into custom enclosures and PCBs straightforward.
🔧 Key Features
- SKU: 11566.
- Card Support: Micro SD and Micro SDHC.
- Power Supply: 4.5V ~ 5.5V DC.
- Voltage Regulator: Built-in 3.3V LDO for SD card power.
- Interface: SPI Protocol (MISO, MOSI, SCK, CS).
- Mounting: 4 M2 screw holes (2.2 mm diameter).
💡 Interface Pins
- GND: Ground.
- VCC: 5V Power Input (4.5V∼5.5V).
- MISO: Master In, Slave Out (Data from SD card to MCU).
- MOSI: Master Out, Slave In (Data from MCU to SD card).
- SCK: Serial Clock.
- CS: Chip Select.
⚙ Technical Specifications Summary
| Input Supply Voltage (VDC) | 4.5 V ~ 5.5 V |
| Voltage Regulator | 3.3 V (On-board) |
| Control Interface | SPI (GND, VCC, MISO, MOSI, SCK, CS) |
| PCB Size (L x W) | 40 x 24 mm |
| Mounting Hole size | M2 (2.2 mm dia.) |
| Net Weight | 6 g |
📦 Package Includes
- 1 × Micro SD Card Reader Module (SKU: 11566)
