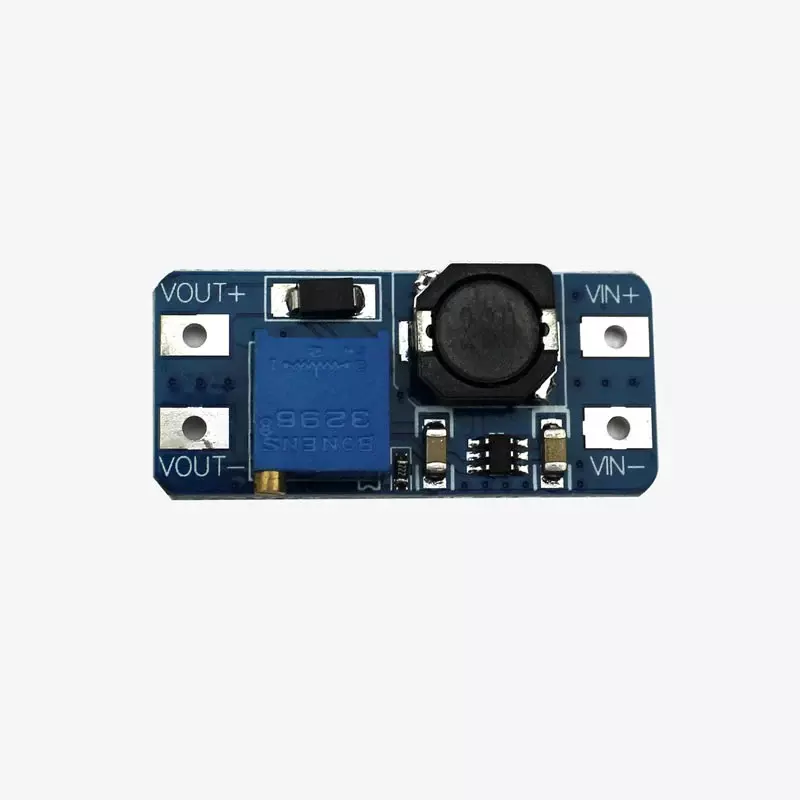

MT3608 2A DC-DC Step Up (Boost) Power Module

MT3608 2A DC-DC Step Up (Boost) Power Module

The MT3608 2A DC-DC Step Up (Boost) Power Module is a high-efficiency solution for converting low-voltage DC inputs into higher-voltage DC outputs. Designed for versatility, this module allows you to easily step up voltage levels with efficiency as high as 93%, making it an essential component for battery-powered applications where higher voltage is required.

Whether you are working on consumer electronics, logic level shifting, or powering small DC motors, the MT3608 provides a stable and adjustable output. Simply connect your input source, and use the onboard variable resistor knob to fine-tune your desired output voltage with precision.

🔧 Key Features

• High Efficiency: Operates at up to 93% efficiency to minimize power loss.
• Adjustable Output: Easily set your desired voltage using the onboard potentiometer.
• Wide Range: Supports input from 3V to 24V and output from 5V to 26V.
• High Current Capacity: Capable of handling up to 2A peak output current.
• Compact Size: Small footprint allows for easy integration into tight spaces.

💡 Applications & Use Cases

• Powering small DC motors from low-voltage batteries.
• Logic level shifting for microcontrollers.
• Portable electronic device power supplies.
• DIY robotics and automation projects.
• General-purpose DC voltage boosting.

⚙️ Technical Specifications

📦 Package Includes

• 1 × MT3608 2A DC-DC Step Up Power Module
