Nano Board R3 CH340 chip Compatible with Arduino

Generic

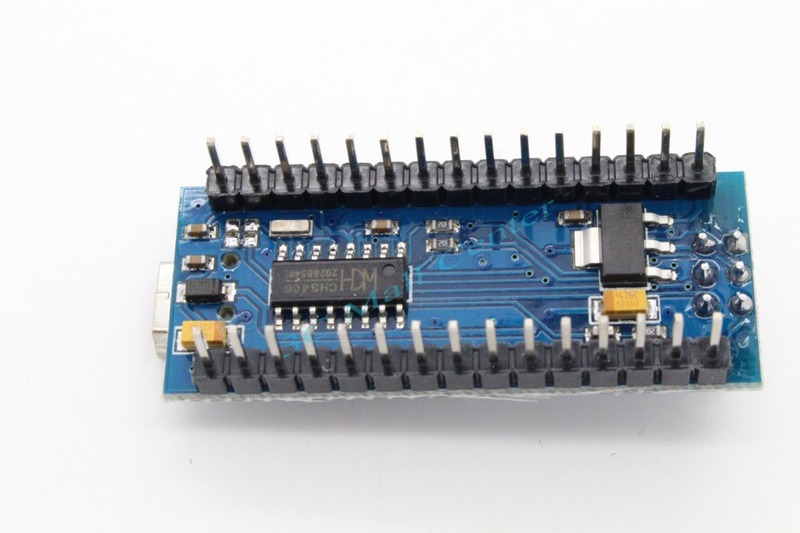

Nano Board R3 CH340 chip Compatible with Arduino

SKU: 7146 - Compact, breadboard-friendly Nano Board R3 compatible with the Arduino ecosystem.
Utilizes the ATmega328P-AU Microcontroller with the CH340 chip for USB communication.
Includes 8 Analog Input Pins (A0-A7) and 14 Digital I/O Pins (D0-D13), with 6 supporting PWM.
Comes fully soldered with headers and includes a USB Mini Cable for immediate use.
Operating Voltage (Logic): 5V; Flash Memory: 32KB; Clock Speed: 16 MHz.
Small form factor (45x18x5 mm) makes it ideal for permanent installations and tight spaces.

Non-returnable

SKU - YTX25265051

₹289.00

₹404.60

In stock:

Choose Quantity:

Product Details

Nano Board R3 ATmega328P-AU with CH340 USB Chip and Mini Cable (Soldered)

The Nano Board R3 is a small, complete, and breadboard-friendly development board based on the ATmega328P-AU microcontroller. This version uses the reliable CH340G integrated circuit for USB-to-TTL serial communication, providing a cost-effective and dependable way to program the board via a USB Mini Cable (included). This board is fully compatible with the Arduino IDE and ecosystem, allowing you to run any sketches written for the standard Arduino Nano.

Despite its small size (45x18mm), the Nano R3 packs the power of the ATmega328, featuring a 16 MHz clock speed, 32 KB of Flash Memory, 2 KB of SRAM, and 1 KB of EEPROM. It offers a rich set of I/O, including 8 analog inputs and 14 digital I/O pins (6 of which can be used for PWM). Crucially, this version comes with the necessary male header pins pre-soldered, making it ready to plug directly into a breadboard or custom PCB. The manual reset switch ensures easy program restart, and the standard 0.1” spacing DIP layout is perfectly designed for prototyping.

🔧 Key Features

SKU: 7146.
Microcontroller: Atmel ATmega328P-AU.
USB Chip: CH340 (Driver required for PC communication).
Operating Voltage (Logic Level): 5V DC.
Input Voltage (Recommended): 7V to 12V (via Vin pin).
I/O Pins: 14 Digital (22 total I/O pins including Analog) / 8 Analog.
Condition: Soldered with male headers and pre-installed bootloader.

💡 Applications

Compact IoT projects and wearable technology.
Projects requiring a breadboard-friendly form factor.
Embedded systems where space is a constraint.
Robotics and small-scale automation.

⚙ Technical Specifications Summary

Item Type	Development Board, Soldered
Board Type	Nano R3
Microcontroller	ATmega328P-AU
Clock Speed	16 MHz
Operating Voltage (VDC)	5 V
Input Voltage (V)	7 to 12 V (via Vin)
Digital I/O Pins	14 (D0-D13)
Analog I/O Pins	8 (A0-A7)
PWM Output Pins	6
Flash Memory	32 KB (2 KB used by bootloader)
SRAM	2 KB
EEPROM	1 KB
DC Current per I/O Pin (mA)	40 mA
USB Chip	CH340
With Cable (Y/N)	Y (USB Mini Cable)
Color	Blue
