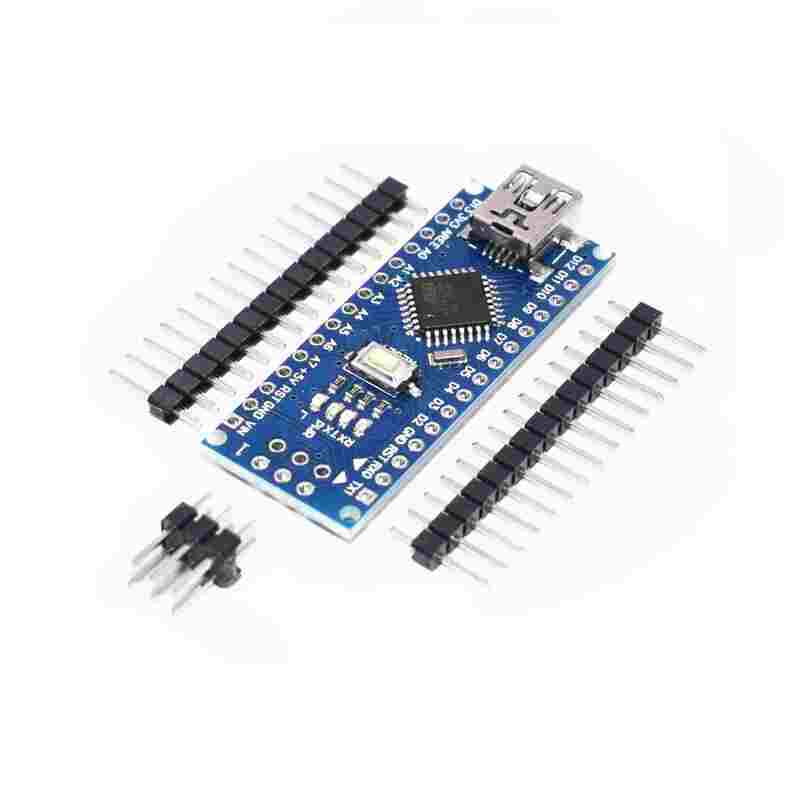

Nano R3 CH340 Chip Development Board

Arduino Nano V3.0 (ATmega328P)

The Arduino Nano is a compact, complete, and breadboard-friendly board based on the powerful ATmega328P microcontroller. It offers nearly the same functionality as its larger sibling, the Arduino Uno, but in a much smaller package. This tiny footprint makes the Nano the go-to choice for projects where size and weight are critical, such as wearables, small robots, and embedded systems, allowing you to move from a breadboard prototype to a finished product with minimal effort.

[Image of Arduino Nano pinout diagram]

🔧 Key Features

• ATmega328P Microcontroller: The same reliable and well-documented 8-bit processor found in the Arduino Uno, running at 16MHz.
• Breadboard-Friendly Design: The DIP-style package with 0.1" pin headers allows the Nano to be plugged directly into a standard breadboard for easy prototyping.
• Rich I/O: Provides 14 digital I/O pins (6 of which can be used as PWM outputs) and 8 analog input pins.
• Onboard USB Connectivity: Features a Mini-USB port for programming, serial communication, and power. Uses the common CH340 or FTDI FT232RL chip for USB-to-serial conversion.
• Fully Arduino Compatible: Program it seamlessly using the Arduino IDE and access thousands of existing libraries and code examples.
• Flexible Power Options: Can be powered via the Mini-USB port, a 5V regulated external power supply, or a 7-12V unregulated supply to the VIN pin.

💡 Applications

• Wearable Technology: Its small size is perfect for integrating into clothing and accessories.
• Compact Robotics: The ideal brain for small robots where every gram and millimeter counts.
• Sensor Nodes: Build a network of small, independent sensors for data collection.
• Rapid Prototyping: The ultimate board for quickly building and testing circuits on a breadboard.
• Embedded Control Systems: Integrate it directly into custom PCBs for a permanent, compact solution.

⚙️ Technical Specifications

Microcontroller	Atmel ATmega328P
Architecture	8-bit AVR
Clock Speed	16 MHz
Flash Memory	32 KB (2 KB used by bootloader)
SRAM	2 KB
EEPROM	1 KB
Digital I/O Pins	14 (6 provide PWM output)
Analog Input Pins	8
Operating Voltage	5V
Input Voltage (VIN)	7-12V (Recommended)
USB Connector	Mini-USB Type-B
USB-to-Serial Chip	CH340 or FT232RL
Dimensions	Approx. 45mm x 18mm

📦 Package Includes

• 1 × Arduino Nano V3.0 ATmega328P Board
• Note: Pin headers may be included but are typically unsoldered.

✅ Why Choose the Nano?

• Powerful in a Small Package: Get the full power of an Arduino Uno in a board that's a fraction of the size.
• Perfect for Prototyping: Designed from the ground up to make working on a breadboard simple and clean.
• Fully Arduino Compatible: No learning curve if you're coming from another Arduino board. Your code and libraries will work seamlessly.
• Cost-Effective Solution: An affordable board that is perfect for both one-off projects and integration into final products.
