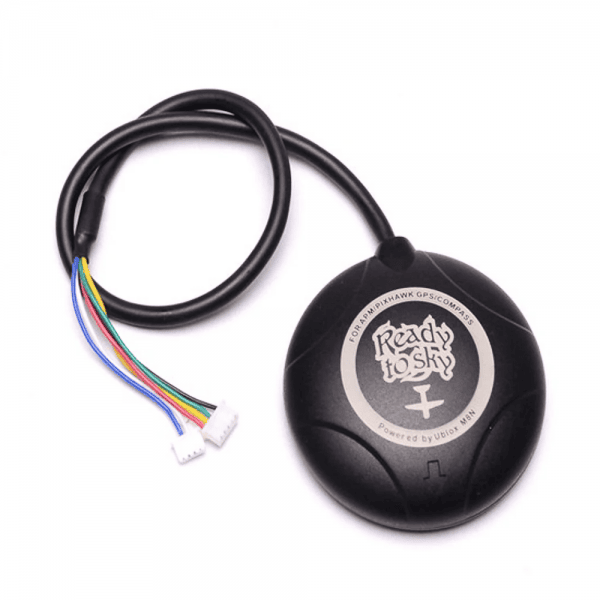

NEO-M8N GPS with Compass for Pixhawk with extra connector for APM

Neo M8N GPS Module with Compass for APM and Pixhawk (Multi-GNSS & 10 Hz)

The Neo M8N GPS Module represents a major upgrade in positioning technology, utilizing the advanced UBlox Neo-M8N receiver to achieve superior accuracy and reliability compared to older M6 and M7 models. This module is capable of receiving signals from three major Global Navigation Satellite Systems (GNSS) simultaneously—including GPS, GLONASS, and BeiDou—dramatically increasing the number of visible satellites and improving fix time and position accuracy, especially in challenging urban environments.

Crucially for autopilot systems, the module integrates a Digital Compass (Magnetometer, typically HMC5883L or QMC5883L), providing essential heading and yaw information to the flight controller (like APM or Pixhawk). The module is designed for drop-in compatibility, featuring two different connector types to ensure easy integration with both legacy APM boards (6-pin) and modern Pixhawk flight controllers. With its high update rate of up to 10 Hz, the Neo M8N provides the rapid, continuous position updates necessary for stable and dynamic control of drones and other unmanned vehicles.

🔧 Key Features

• GPS Receiver Chip: UBlox Neo-M8N (Latest Generation).

• Integrated Sensor: Digital Compass/Magnetometer (HMC5883L/QMC5883L).

• GNSS Support: GPS, GLONASS, BeiDou (Simultaneous operation).

• Update Rate: Up to 10 Hz (10 times per second).

• Communication: UART (GPS data) and I2C (Compass data).

• Connector Interface: Dual Port (APM 6-pin and Pixhawk style).


💡 Applications

• Flight Control and Navigation in multi-rotor drones (Quadcopters, UAVs).

• Waypoint Navigation and Autonomous Flight Modes (via APM/Pixhawk).

• Accurate location and velocity data logging.

• Georeferencing for camera mapping and surveying.


⚙️ Technical Specifications Summary

📦 Package Includes

• 1 × Neo M8N GPS Module with Compass

• 1 × APM Connection Cable

• 1 × Pixhawk Connection Cable (Optional/Separate)

• 1 × GPS Folding Antenna Mount (Optional/Separate)
