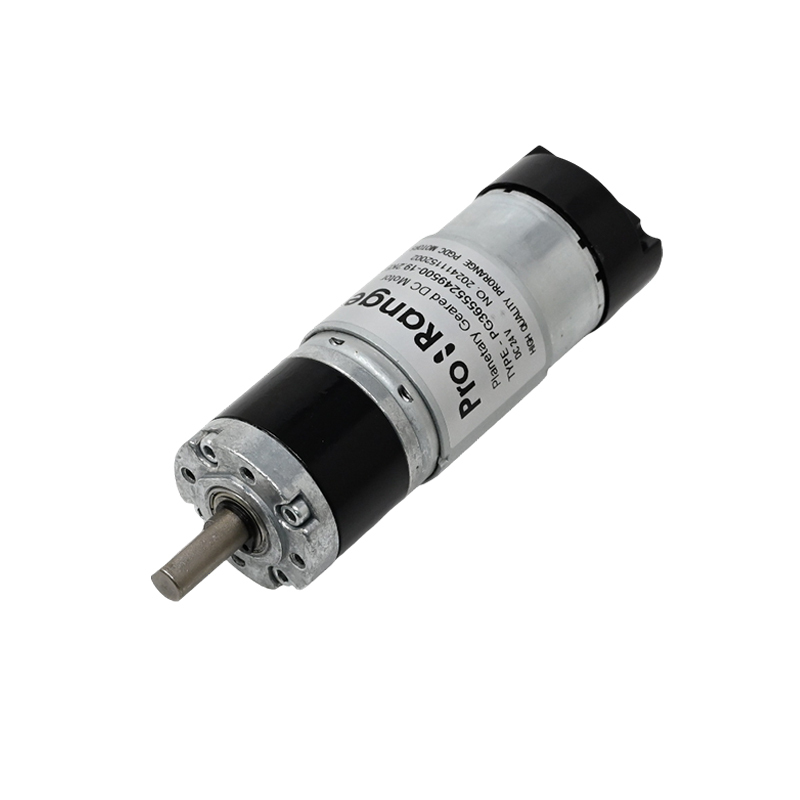

Planetary Gear DC Motor Pro-Range 72.6 N-cm 468 RPM 24V PG36M555-19.2K with encoder

Pro-Range PG36M555 High-Torque 24V Planetary Gear DC Motor with Encoder

The Pro-Range PG36M555-19.2K is a high-performance 24V DC planetary geared motor engineered for demanding applications that require a balance of moderate speed and high torque. The motor features a robust, multi-stage planetary gearbox (PG36 series) with a 19.2:1 reduction ratio, translating the high speed of the internal DC motor into a usable output speed of 468 RPM with a powerful 72.6 N-cm of rated torque. Planetary gearboxes are known for their compact size, high efficiency, and excellent continuous and peak torque capability compared to other gearbox types.

This motor is equipped with an integrated ME-37 Hall Effect Encoder which provides a resolution of 7 Pulses Per Revolution (PPR) on the output shaft. This encoder feedback is crucial for applications requiring precise closed-loop speed regulation, accurate positioning, and real-time monitoring, such as autonomous vehicles, CNC machines, and industrial actuators.

🔧 Key Features

• Motor Type: Brushed Permanent Magnet DC Motor with Planetary Gearbox.
• Model Series: PG36M555.
• Voltage Rating: 24V DC.
• Gear Ratio: 19.2 : 1.
• Encoder Type: ME-37 Hall Effect Two Channel Magnetic Encoder.
• Encoder Resolution: 7 Pulses Per Revolution (PPR).
• Shaft Type: D-Type Output Shaft.

💡 Applications

• High-power robotics (e.g., medium-sized mobile robots, articulated arms).
• Automated Guided Vehicles (AGVs) and specialized electric vehicles.
• Industrial linear actuators and automated doors/gates.
• Precision-driven applications requiring reliable speed and position feedback.

⚙ Technical Specifications Summary

📦 Package Includes

• 1 × Pro-Range 24V Planetary Gear DC Motor PG36M555-19.2K with Encoder ME-37, 7PPR
