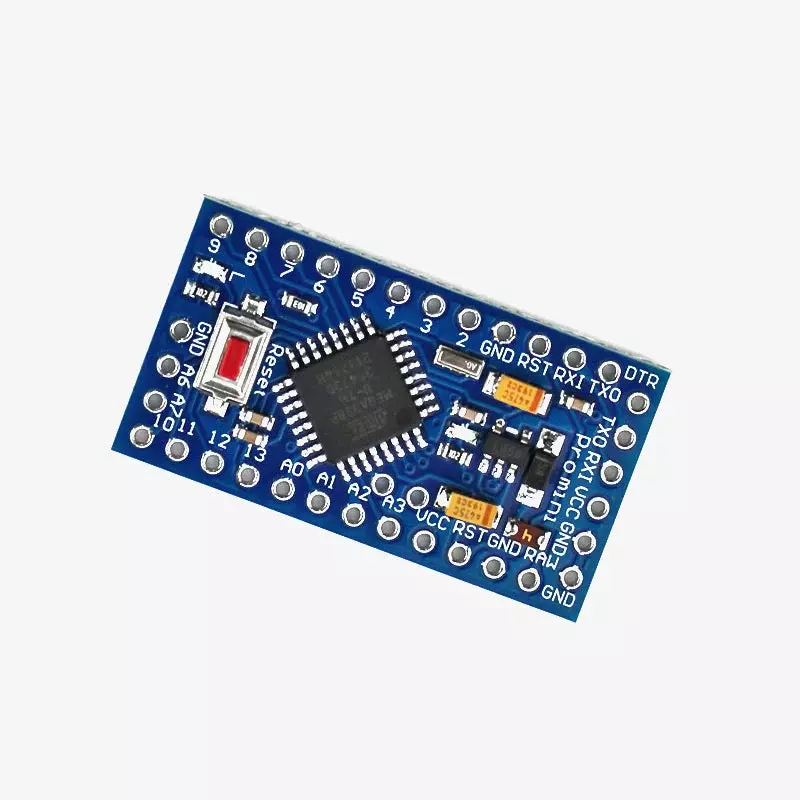

Pro Mini ATMEGA328P 5V/16M Development Board - Compatible with Arduino

Pro Mini ATMEGA328P 5V/16MHz Development Board - Compatible with Arduino

The Pro Mini ATMEGA328P 5V/16MHz Development Board is a compact and lightweight microcontroller platform designed for embedded applications where space is limited. Based on the popular ATmega328P microcontroller, it offers functionality similar to the Arduino UNO while occupying only a fraction of the space.

Unlike traditional Arduino boards, the Pro Mini does not include an onboard USB interface, making it smaller, lighter, and more suitable for permanent installations. Programming is performed using an external FTDI or compatible USB-to-Serial adapter. Its low power consumption, compact size, and extensive I/O capabilities make it ideal for robotics, IoT projects, wearable devices, sensor networks, and custom electronics applications.

🔧 Features

• Based on the ATmega328P 8-bit AVR Microcontroller
• 16MHz Clock Speed for reliable and efficient processing
• 5V Operating Voltage compatible with most sensors and modules
• Compact design suitable for embedded and space-constrained projects
• Auto-reset support for convenient programming
• Integrated Power and Status LEDs
• Compatible with the Arduino IDE and Arduino libraries
• Supports external FTDI programmer for code uploading

📋 Specifications

• Microcontroller: ATmega328P (8-bit AVR)
• Operating Voltage: 5V
• Input Voltage (Raw): 5V – 12V
• Clock Frequency: 16MHz
• Flash Memory: 32KB
• EEPROM: 1KB
• SRAM: 2KB
• Digital I/O Pins: 14
• Analog Input Pins: 8
• Maximum Current per I/O Pin: 40mA
• Maximum Total Chip Current: 200mA
• Operating Temperature: -40°C to +105°C

📦 Package Includes

• 1 × Pro Mini ATMEGA328P 5V/16MHz Development Board
