Pro‑Range

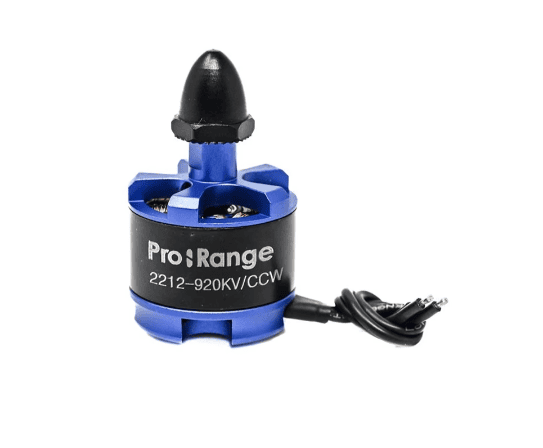

Pro‑Range B2212‑920KV CCW Brushless Drone Motor
- 920 KV rating for optimal efficiency and performance.
- Supports 2S–4S LiPo battery configurations.
- Compatible with propellers like 8045 and 1045.
- High efficiency up to 6.1 g/W.
- Lightweight design (~50 g) and max thrust up to 980 g.
Non-returnable
SKU - YTXZC000126
₹658.19
₹987.28
In stock:
10
Choose Quantity:
Share:
Product Details
Key Features
- 920 KV rating for optimal efficiency and performance.
- Supports 2S–4S LiPo battery configurations.
- Compatible with propellers like 8045 and 1045.
- Maximum thrust up to 980 g (with appropriate prop and battery).
- Lightweight design (~45–50 g) for improved power‑to‑weight ratio.
- Counter‑clockwise (CCW) rotation — ideal for designated quadcopter arm placement.
Applications
Ideal for medium‑sized quadcopters and fixed‑wing UAVs where efficient thrust and lightweight motor design are required.
Specifications
| Specification | Value |
|---|---|
| Motor KV (RPM/V) | 920 |
| Rated Voltage | 11.1 V |
| Load Current | 7.3 A to 10.6 A |
| Power Output | 81 W to 118 W |
| Maximum Thrust | 465 g to 980 g |
| Shaft Diameter | 3.17 mm |
| No‑Load Current | 0.7 A to 0.8 A |
| Outer Diameter | 27.7 mm |
| Weight | 45 g |
| Rotation | CCW |
| Poles | 14 |
| Operating Temperature | ‑20 °C to 80 °C |
Package Includes
- 1 × Pro‑Range B2212‑920KV CCW Brushless Drone Motor
- 1 × Screw set
Warranty
6 months from date of delivery against manufacturing defects only. Warranty void if product is misused, altered, soldered or damaged by static, water, fire or chemicals.
