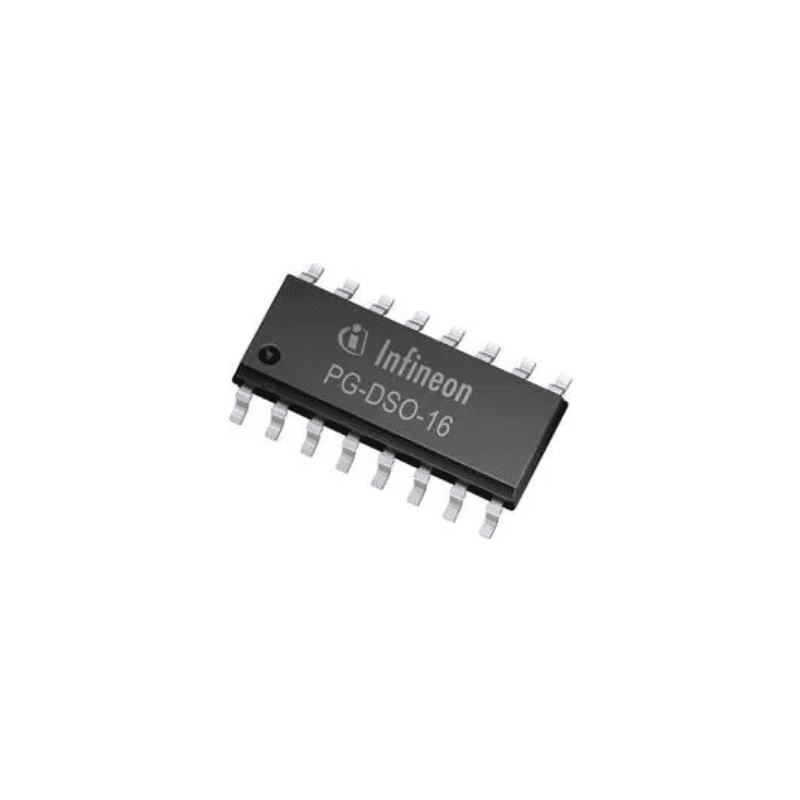

IRS2092STRPBF Class-D Audio Amplifier Driver IC - 500W Mono Audio Amplifier Controller, NSOIC-16, Infineon Technologies

IRS2092STRPBF Class-D Audio Amplifier Driver IC - Infineon Technologies

The IRS2092STRPBF from Infineon Technologies is a high-voltage, high-performance Class-D audio amplifier driver IC featuring an integrated PWM modulator and comprehensive protection circuitry. Designed for high-power audio applications, it enables the creation of efficient Class-D amplifier systems when used with external MOSFETs and a small number of supporting components.

Leveraging Infineon's proprietary Noise Isolation Technology, the IRS2092STRPBF combines a high-current gate driver stage with a high-speed, low-noise error amplifier on a single compact die. The flexible PWM architecture allows designers to implement customized amplifier topologies while maintaining excellent audio quality, efficiency, and reliability.

🔧 Features

• High-performance Class-D audio amplifier driver IC
• Integrated PWM modulator and protection functions
• Supports amplifier designs up to 500W output power
• Infineon proprietary Noise Isolation Technology
• High-current MOSFET gate driver outputs
• Low-noise, high-speed error amplifier
• Flexible PWM topology implementation
• Surface-mount NSOIC-16 package
• Suitable for professional and consumer audio systems

📋 Specifications

• Manufacturer: Infineon Technologies
• Part Number: IRS2092STRPBF
• Package Type: NSOIC-16
• Mounting Type: Surface Mount
• Supply Voltage Range: 10V to 18V
• Audio Amplifier Type: Class-D
• Output Configuration: Mono
• Channels: 1 Channel
• Output Power: 500W × 1 @ 4Ω
• Operating Temperature: -40°C to +125°C
• Number of Pins: 16

🎵 Applications

• Home Theater Systems
• Mini Component Stereo Systems
• Powered Speaker Systems
• Subwoofer Amplifiers
• Professional Audio Equipment
• General Purpose Audio Power Amplifiers

📦 Package Includes

• 1 × IRS2092STRPBF Class-D Audio Amplifier Driver IC
