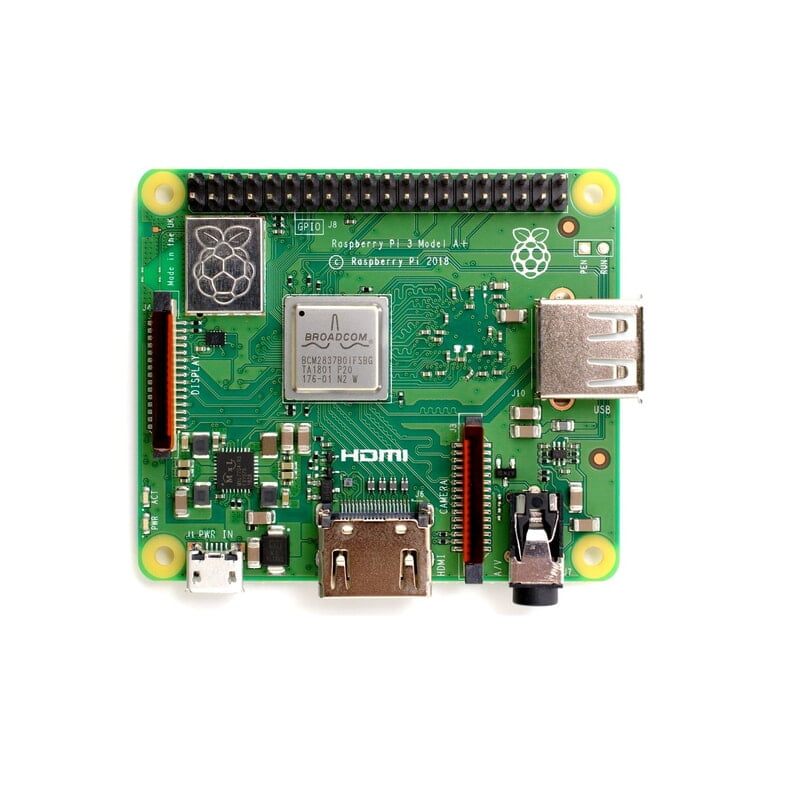

Raspberry Pi 3 Model A+

Raspberry Pi 3 Model A+ – Compact Wireless Single Board Computer

The Raspberry Pi 3 Model A+ is the 2018 refresh of the original Pi A-series, built around the Broadcom BCM2837B0 SoC with a 1.4GHz 64-bit quad-core Cortex-A53 (ARMv8) processor. It pairs this performance with built-in dual-band 802.11ac WiFi and Bluetooth 4.2/BLE, delivering strong connectivity and processing power in a footprint identical to the original Raspberry Pi 1 Model A+.

Unlike the Model B+, the 3 Model A+ drops the Ethernet jack and two of the three USB ports, keeping only a single USB 2.0 port. This trims cost, power draw, and board size — at just 65mm × 56mm — while retaining full compatibility with existing Pi operating systems, HATs, and accessories, making it a great fit for minimalist and space-constrained builds.

🔧 Key Features

• SoC: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit Quad-Core.
• Clock Speed: 1.4 GHz.
• RAM: 512MB.
• Wireless: Dual-band 802.11ac WiFi + Bluetooth 4.2/BLE.
• GPIO: 40-pin extended header (compatible with existing HATs).
• Video Output: Full-size HDMI.
• Ports: 1× USB 2.0, Micro USB power input, Audio/Composite connector.
• Camera & Display: Same CSI camera and DSI display interfaces as the B+ model.
• Storage: MicroSD card slot.

💡 Applications

• Compact IoT and edge-device projects
• Educational computing and coding setups
• Low-power, always-on network clients
• Minimalist media or camera-based builds
• Retro gaming and lightweight desktop projects
• Prototyping where board size and cost matter more than multiple USB ports

⚙️ Technical Specifications Summary

📦 Package Includes

• 1 × Raspberry Pi 3 Model A+ Board

Note: Power supply and MicroSD card not included unless specified separately.
