Raspberry Pi Zero 2 W w/o Header

Raspberry Pi Zero 2 W with Header - Quad-Core Wireless SBC

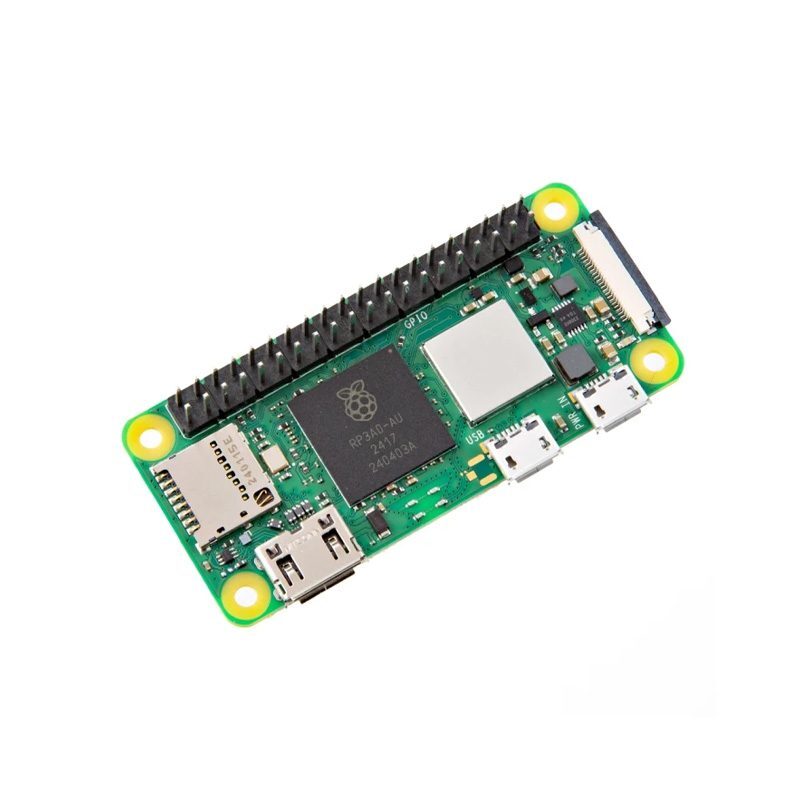

The Raspberry Pi Zero 2 W takes the tiny, iconic form factor of the original Zero and supercharges it with modern processing power. Utilizing the RP3A0 System-in-Package (SiP), which integrates the Broadcom BCM2710A1 die (the same quad-core 64-bit processor found in the original Pi 3) and 512MB of LPDDR2 SDRAM, this board offers a massive fivefold speed improvement over the Pi Zero W. This makes complex multitasking, lightweight desktop usage, and demanding emulation projects suddenly viable on a credit-card-sized board.

The "with Header" variant means the 40-pin GPIO header is pre-soldered and ready for immediate use, allowing direct connection to HATs, expansion boards, and prototype wiring without requiring any soldering. Connectivity is handled by built-in WiFi and Bluetooth 4.2 BLE, ensuring seamless integration into the Internet of Things (IoT). Power and data are managed via its Micro USB ports, and video output is provided by a Mini HDMI connector, making the Pi Zero 2 W a highly versatile and powerful choice for embedded computing.

🔧 Key Features

• Processor: Broadcom BCM2710A1 / RP3A0 SiP (Quad-core ARM Cortex-A53).

• Clock Speed: 1 GHz (64-bit).

• RAM: 512MB LPDDR2 SDRAM.

• Wireless: 802.11 b/g/n WiFi and Bluetooth 4.2 BLE.

• GPIO: 40-pin header (Pre-soldered).

• Ports: Mini HDMI (1080p60 output), Micro USB (Power), Micro USB (OTG Data), CSI-2 camera connector.


💡 Applications

• IoT Gateways and home automation hubs.

• Retro Gaming Emulators and handheld consoles.

• Miniature Robots and autonomous vehicles.

• Low-power Time-Lapse Cameras and surveillance systems.


⚙️ Technical Specifications Summary

📦 Package Includes

• 1 × Raspberry Pi Zero 2 W Board (with Pre-soldered Header)
