RP2040 Zero Pi Development Board with Header
- Powered by the RP2040 microcontroller featuring dual ARM Cortex-M0+ cores running up to 133MHz
- Equipped with 264KB SRAM and 2MB Flash memory for embedded applications
- Supports USB 1.1 Host and Device functionality for versatile connectivity
- Features multiple communication interfaces including SPI, I2C, and UART
- Offers low-power operating modes and an onboard temperature sensor
- Compact stamp-hole design with pre-soldered headers for easy integration into projects
Non-returnable
SKU - YTX26270046
₹367.77
₹514.88
In stock:
10
Choose Quantity:
Share:
Product Details

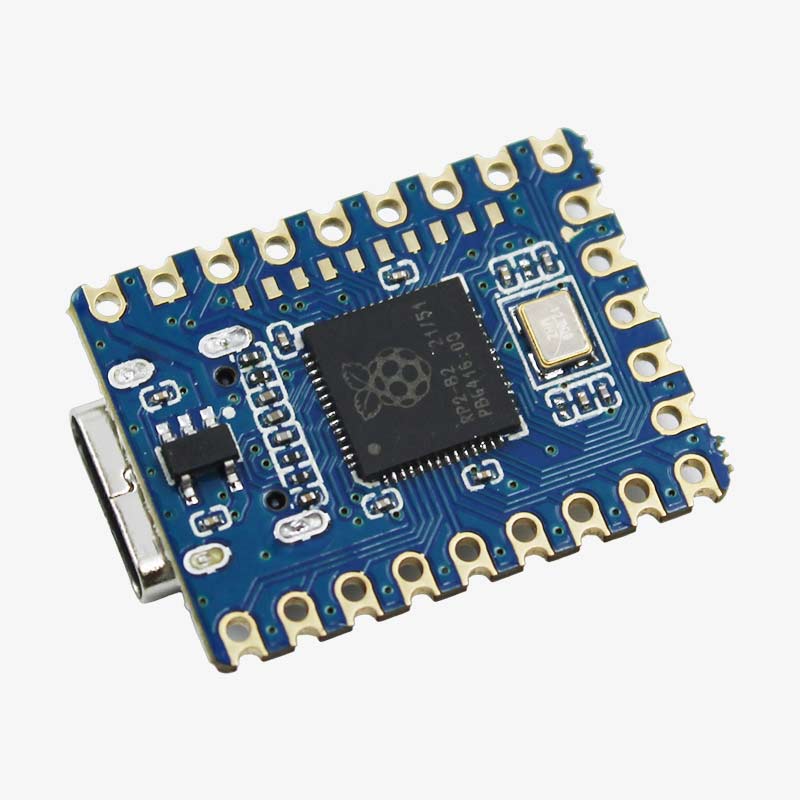

RP2040 Zero Pi Development Board with Header
The RP2040 Zero Pi Development Board is a compact and powerful microcontroller development platform based on the Raspberry Pi-designed RP2040 chip. Featuring dual ARM Cortex-M0+ processor cores running at up to 133MHz, it delivers excellent performance for embedded systems, IoT devices, robotics, automation, and educational projects.
The board integrates 264KB of SRAM and 2MB of onboard Flash memory, providing ample resources for complex applications. With support for USB 1.1 Host and Device functionality, programmable I/O (PIO) state machines, PWM outputs, ADC channels, and multiple communication interfaces, the RP2040 Zero Pi offers exceptional flexibility for makers, students, and professionals.
🔧 Specifications
- Microcontroller: Raspberry Pi RP2040
- Processor: Dual-Core ARM Cortex-M0+
- Clock Speed: Up to 133MHz
- SRAM: 264KB
- Flash Memory: 2MB
- USB Support: USB 1.1 Host and Device
- GPIO Pins: 29 GPIOs (20 Available via Row Pins)
- SPI Interfaces: 2
- I2C Interfaces: 2
- UART Interfaces: 2
- ADC Channels: 4
- PWM Channels: 16
- PIO State Machines: 8 Programmable I/O State Machines
- On-Chip Features: Clock, Timer, and Temperature Sensor
- Software Support: Accelerated Floating-Point Library
- Power Management: Low-Power Operating Modes
📦 Package Includes
- 1 × RP2040 Zero Pi Development Board with Header
