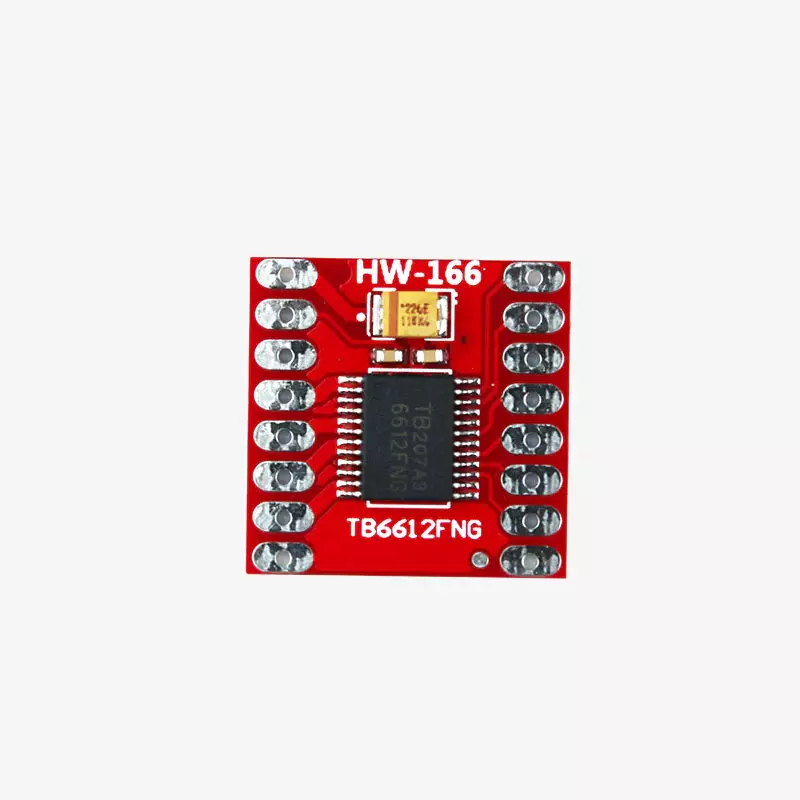

TB6612FNG Dual DC Motor Driver Module
- Based on the TB6612FNG dual H-bridge motor driver IC for efficient motor control
- Controls up to two DC motors independently with a continuous current of 1.2A per channel (3.2A peak)
- Supports four motor operating modes: Clockwise (CW), Counter-Clockwise (CCW), Short Brake, and Stop
- Features independent A and B motor output channels for dual motor applications
- Accepts PWM speed control signals up to 100kHz for smooth and precise motor speed regulation
- Includes a STBY (Standby) pin to enable or disable motor operation and reduce power consumption
Product Details
TB6612FNG Dual DC Motor Driver Module
The TB6612FNG Dual DC Motor Driver Module is a compact and efficient motor control board designed to drive DC motors and small stepper motors with high performance and low power consumption. Based on the popular TB6612FNG dual H-bridge driver IC, it offers superior efficiency compared to traditional motor driver solutions while supporting precise speed and direction control.
The module can control up to two DC motors independently with a continuous current of 1.2A per channel and peak currents up to 3.2A. It supports multiple motor control modes including clockwise, counter-clockwise, short brake, and stop. With PWM frequency support up to 100kHz, it enables smooth and accurate motor speed regulation for robotics, automation, and embedded applications.
🔧 Features
- Output Current: 1.2A Continuous per Channel, 3.2A Peak
- Standby Control Pin for reduced power consumption
- Motor Control Modes: CW, CCW, Short Brake, and Stop
- PWM Speed Control with frequencies up to 100kHz
- Built-in Thermal Shutdown Protection
- Low Voltage Detection Circuit for enhanced reliability
- 0.1-inch Header Pin Spacing for easy prototyping and integration
- Filtering Capacitors included on both power supply lines
- All TB6612FNG pins are conveniently broken out for easy access
📋 Specifications
- Driver IC: TB6612FNG
- Logic Supply Voltage (VCC): 2.7V – 5.5V DC
- Motor Supply Voltage (VM): Up to 15V DC
- Continuous Current: 1.2A per Channel
- Peak Current: 3.2A
- Number of Channels: 2 Motor Outputs
- Dimensions: 30 × 20 × 10 mm
- Control Interface: PWM, Direction Control, Standby Control
📦 Package Includes
- 1 × TB6612FNG Dual DC Motor Driver Module
