Tower Pro MG90S Servo Motor with Metal Gear

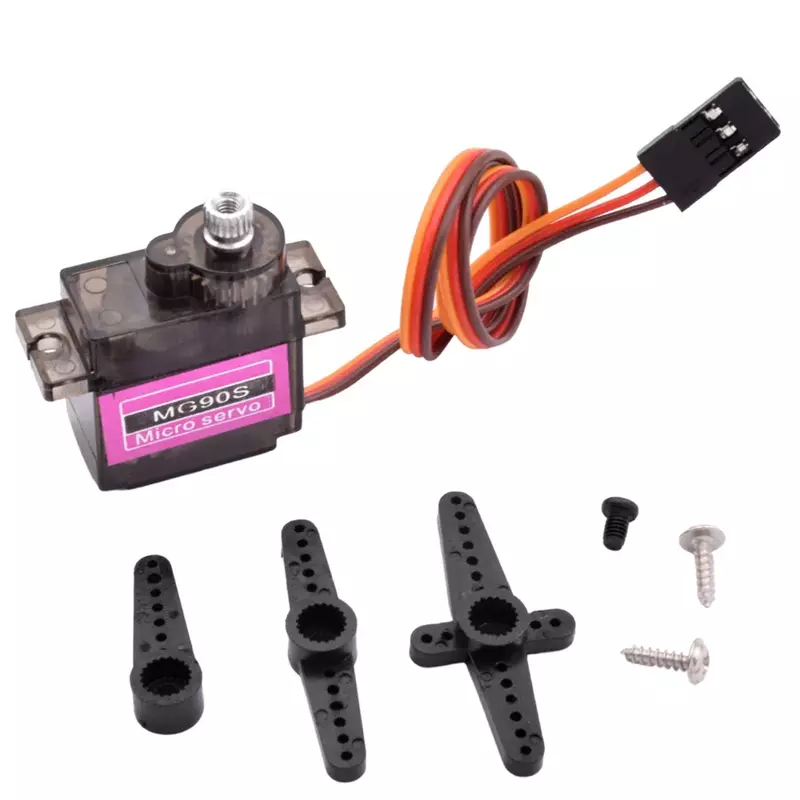

TowerPro MG90S Metal Gear Micro Servo Motor

The TowerPro MG90S is a highly popular micro servo motor known for its metal gear construction, high torque output, and fast response. It operates on a supply voltage between 4.8V and 6.6V and is capable of delivering up to 2.2 kg/cm of stall torque at 6.6V. With a typical operating speed of 0.08 seconds per 60 degrees, this servo motor is ideal for applications requiring precise positioning and reliable performance.

Technical Specifications

• Operating voltage: 4.8 - 6.6 V
• Stall torque: 1.8 kg/cm at 4.8V, 2.2 kg/cm at 6.6V
• Speed: 0.10 sec/60° at 4.8 V, 0.08 sec/60° at 6.6 V
• Rotation range: 0° to 180°
• Weight: 13.4 grams
• Dimensions: approx. 22.8 x 12.4 x 32.5 mm
• Dead band width: 1 µs
• Servo plug: JR compatible

Features

• Durable metal gears enhance longevity and reduce wear
• Fast and accurate positioning with digital control
• Three-wire interface with standard servo connector
• Compact size and lightweight design for easy integration
• Suitable for RC vehicles, drones, robotic arms, and hobby electronics

Applications

The MG90S servo motor is widely used in RC airplanes, helicopters, quadcopters, robotic arms, mini manipulators, and custom hobby projects requiring precision torque and durability.
