TSOP1738 IR Receiver – Yantronix
- Infra-red remote signal receiver module tuned to 38 kHz. :contentReference[oaicite:1]{index=1}

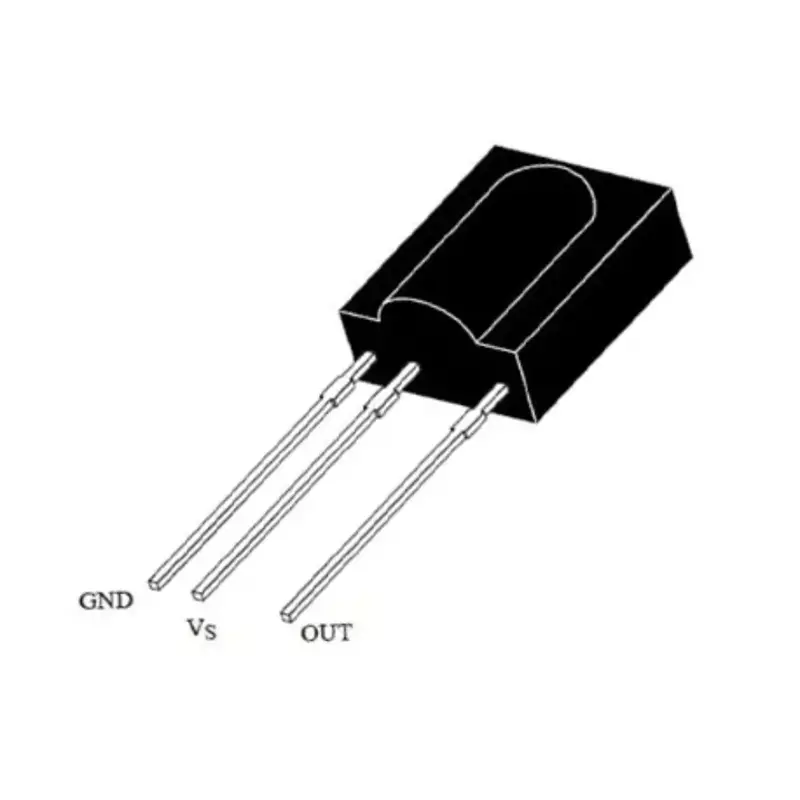

- Three-pin SIP package: GND, Vcc (~5 V), OUT. :contentReference[oaicite:2]{index=2}
- Designed for decoding remote control IR signals and interfacing with microcontrollers.
Non-returnable
SKU - YTX-ZC-118
₹50.00
₹76.00
In stock:
-1
Choose Quantity:
Share:
Product Details
Key Features
- The TSOP1738 module integrates a PIN diode, pre-amplifier and demodulator to convert a 38 kHz modulated IR signal into a digital output. :contentReference[oaicite:3]{index=3}
- Operating On ~5 V supply with low current consumption (~0.4-1 mA) and high immunity to ambient light. :contentReference[oaicite:4]{index=4}
- Output is active-low: when a valid IR burst is received the output pin drops (goes low). :contentReference[oaicite:5]{index=5}
Applications
Ideal for DIY electronics projects, home automation, remote control signal decoding (TV, audio, IR remotes) and interfacing with microcontrollers (Arduino, ESP8266/ESP32 etc.).
Specifications
| Specification | Value |
|---|---|
| Carrier Frequency | 38 kHz (for remote-IR) :contentReference[oaicite:6]{index=6} |
| Supply Voltage | 4.5 - 5.5 V typical (5 V recommended) :contentReference[oaicite:7]{index=7} |
| Supply Current | ~0.4-1 mA :contentReference[oaicite:8]{index=8} |
| Operating Temperature | –25 °C to +85 °C :contentReference[oaicite:9]{index=9} |
Package Includes
- 1 × TSOP1738 IR Receiver module.
