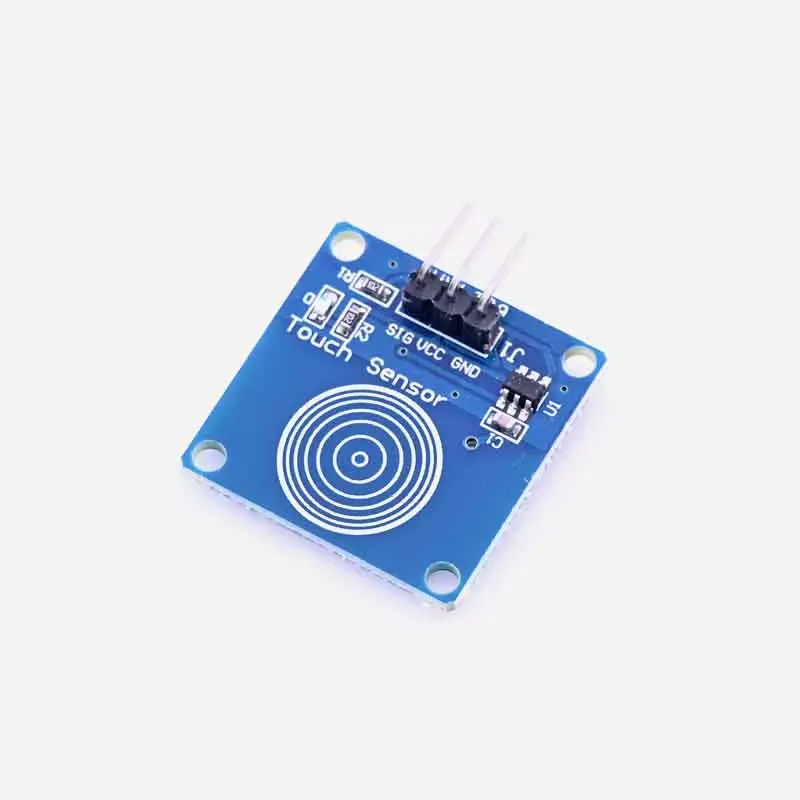

TTP223 1 Channel Capacitive Touch Sensor Module

TTP223 1 Channel Capacitive Touch Sensor Module

The TTP223 1 Channel Capacitive Touch Sensor Module is a high-performance, low-power touch detection solution designed for modern electronics. It utilizes the TTP223 IC to provide a reliable capacitive touch interface, making it an excellent replacement for traditional mechanical push buttons in your DIY projects.

This module is highly versatile and compatible with various microcontrollers, including Arduino, ESP8266, and Raspberry Pi. Its compact form factor and simple interface allow for quick prototyping and seamless integration into touch-sensitive control panels or interactive installations.

🔧 Key Features

• Touch Detection: Uses advanced capacitive sensing technology for reliable input.
• Wide Voltage Range: Operates efficiently between 2V and 5.5V.
• Fast Response: Features a quick 220mS response time for immediate feedback.
• Easy Interface: Simple digital output makes it compatible with most microcontrollers.
• Compact Size: Small footprint allows for easy mounting in tight enclosures.

💡 Applications & Use Cases

• Replacing mechanical buttons in DIY electronics.
• Creating touch-sensitive control panels.
• Interactive lighting and home automation projects.
• Robotics and human-machine interface (HMI) development.
• Prototyping touch-based user interfaces.

⚙️ Technical Specifications

📦 Package Includes

• 1 × TTP223 1 Channel Capacitive Touch Sensor Module
