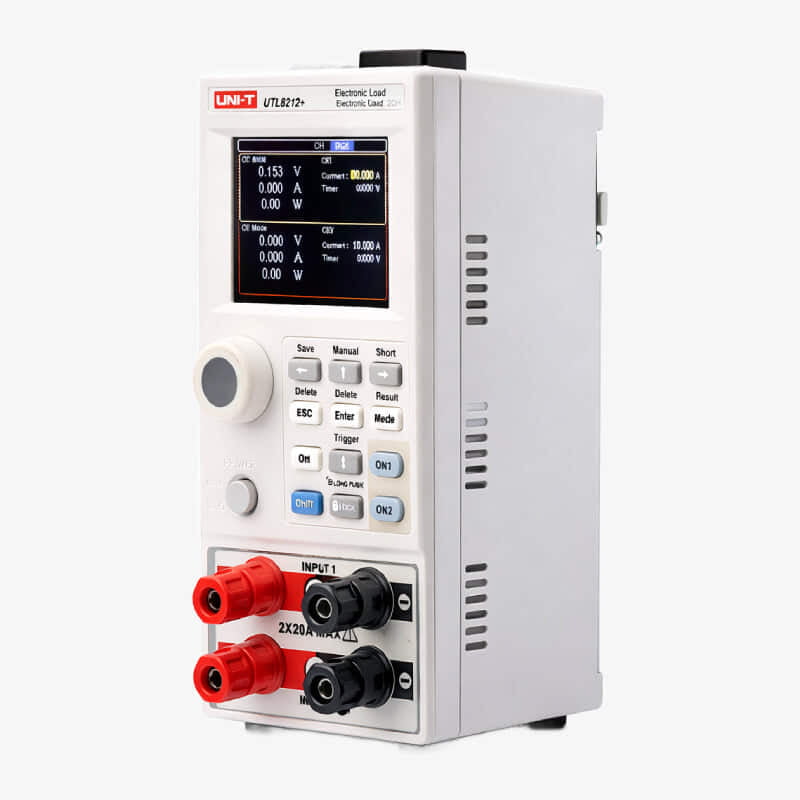

UNI-T UTL8212+ Electronic load - Dual Channel

UNI-T UTL8212+ Electronic load - Dual Channel

The UNI-T UTL8212+ is a professional-grade dual-channel DC electronic load designed for precision testing and evaluation of power supplies, batteries, adapters, and other DC power sources. It provides engineers with a versatile and reliable solution for electronics labs, R&D, and production testing environments.

With its dual independent channels, the UTL8212+ allows for simultaneous testing, significantly increasing efficiency. It supports up to 150V and 20A per channel, with a total power capacity of 2×200W, ensuring it can handle a wide range of power electronics applications with high accuracy and stability.

🔧 Key Features

• Dual Channels: Two independent load channels for simultaneous testing of multiple sources.
• High Precision: Resolution of 1 mV and 1 mA for accurate measurement.
• Dynamic Testing: Supports dynamic frequency up to 5 kHz.
• Slew Rate Control: Wide current slew rate from 0.04 A/ms to 0.2 A/μs.
• Connectivity: Built-in RS232 with optional RS485 for digital integration.
• Compact Design: 1/4 4U form factor ideal for crowded lab benches.

💡 Applications & Use Cases

• Power supply performance testing and burn-in.
• Battery discharge and capacity evaluation.
• Adapter and charger characterization.
• DC source lab testing and validation.
• Electronics R&D and maintenance troubleshooting.

⚙️ Technical Specifications

📦 Package Includes

• 1 × UNI-T UTL8212+ Dual-Channel Electronic Load
