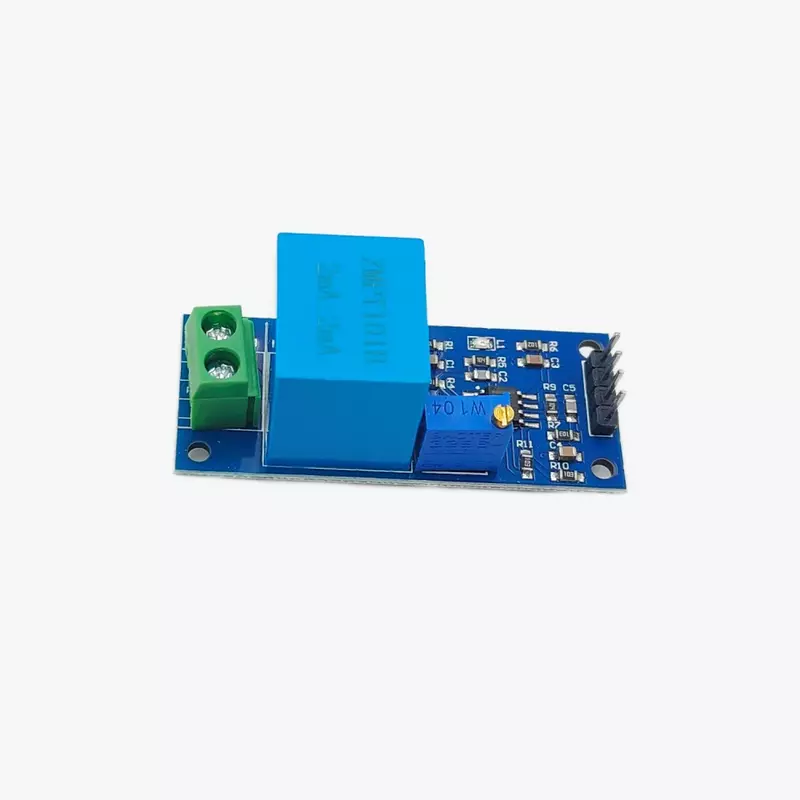

ZMPT101B Single Phase AC Voltage Sensor Module

ZMPT101B AC Voltage Sensor Module (High-Precision Voltage Detection)

The ZMPT101B AC Voltage Sensor Module is a compact and high-accuracy solution for measuring AC voltages up to 250V. Built around a miniature precision voltage transformer and an onboard op-amp circuit, it provides stable and linear analog voltage output suitable for microcontroller-based systems such as Arduino, ESP8266, and Raspberry Pi.

With its excellent galvanic isolation and wide measurement range, the module is ideal for energy metering, fault detection, and electrical diagnostics in both household and industrial environments. The onboard potentiometer allows users to adjust sensitivity for accurate calibration to the desired voltage range.

🔧 Key Features

• Sensor Type: ZMPT101B Precision Voltage Transformer
• Measurement Range: AC voltage up to 250V
• Accuracy: High precision and consistency
• Output Type: Analog voltage output (adjustable via potentiometer)
• Op-Amp Circuit: Onboard precision operational amplifier for signal conditioning
• Galvanic Isolation: Safe isolation between high-voltage and low-voltage sides
• Compatibility: Works with Arduino, ESP8266, ESP32, and Raspberry Pi
• Compact Design: Small, lightweight, and easy to mount on PCBs
• Operating Temperature: -40°C to +70°C

💡 Applications

• AC Voltage Measurement in automation and monitoring systems
• Energy Metering and power usage tracking
• Overload and Fault Detection in electrical circuits
• Ground Fault and Leakage Detection systems
• Smart Home and Industrial Equipment monitoring
• Relay Protection and control circuits

⚙️ Technical Specifications

📦 Package Includes

• 1 × ZMPT101B AC Voltage Sensor Module
